ENVEA launches its NDIR-GFC multi-gas analyser MIR 9000e

Eco-designed, ultra-compact, smart & connected instrument, the MIR 9000e is a must have for measuring combustion exhaust gases from boiler, industrial furnaces and process applications, as well as for CEMS applications.

The multi-gas monitor meets the highest International and European standards, such as the EN 15267 and has been tested and certified in accordance with the "TUV Approved" Guidelines of the TÜV Rheinland Group. It can measure simultaneously and continuously up to 7 gases, depending on your selection: NO, SO2, CO, CO2, CH4, N2O, O2 and residual H20) including greenhouse gases.

The analyser is adaptable to your actual and future requirements and can be upgraded from one single parameter to the full gas configuration without hardware at customer site. It is particularly suitable for sites needing to comply with emissions reporting requirements issued by the European directive 2010/75/EU related to Large Combustion Plants.

Extremely compact 19’’- 3U analyser, the MIR 9000e guarantees easy turnkey integration and smart operations including AMS control functionalities: integrated sampling control, automatic zero and span gas injection, external pump control, system alarms display, etc. Compatible with any type of drying technology (gas cooler, permeation, dilution...) it is versatile and is suitable even for upgrades and seamless retrofit of existing gas cabinets on the market.

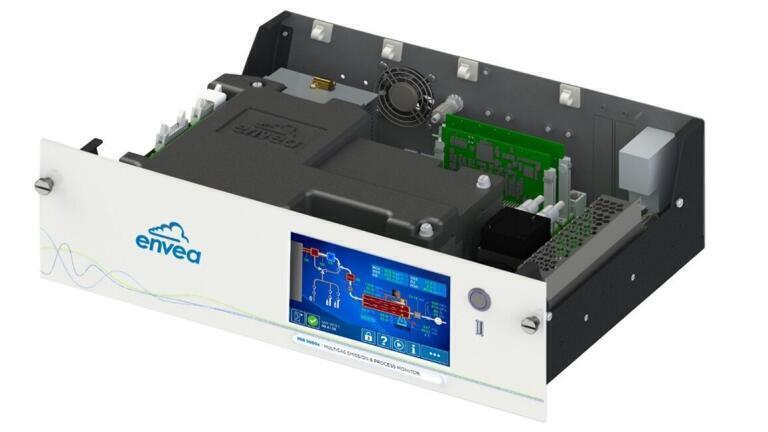

The gas monitor utilises the most recent optical and electronic technologies offering increased precision and robustness, while requiring only limited maintenance and ultra low power consumption. Thanks to its breakthrough mechanical design for weight and power saving as well as its exclusive "inside the box" modular concept, the monitor is insensitive to T° variations in the range +5° to +40°C (no air conditioning required).

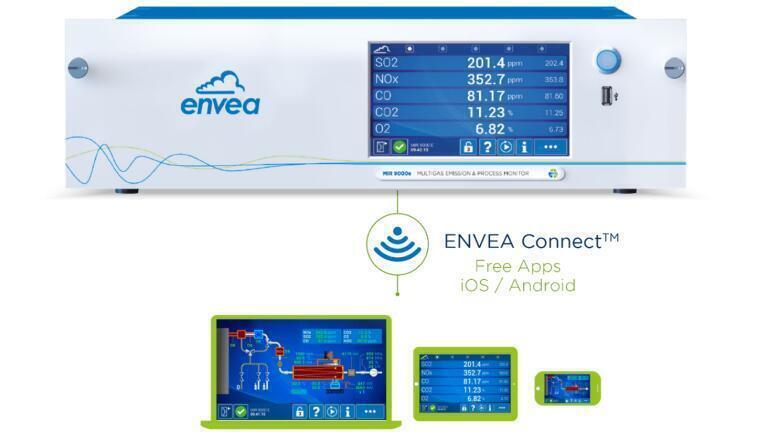

Smart and connected, with one click access to key functions via touchscreen or via full remote access to full operation from computer through TCP/IP connexion or on smartphone, through ENVEA Connect™ App (free download) and proprietary WiFi. Smartphone alerts and notifications, software updates, direct access to real-time and stored data with time frame selection to generate graphs, embedded Communication Protocol for DAHS software (WEX®) with automatic recognition and configuration, IoT services, etc. are just some of the ultra-innovative features that have been implemented in this highly innovative system.
