D-EVA performs parallel and fast concentration of samples in PCB and dioxin analysis

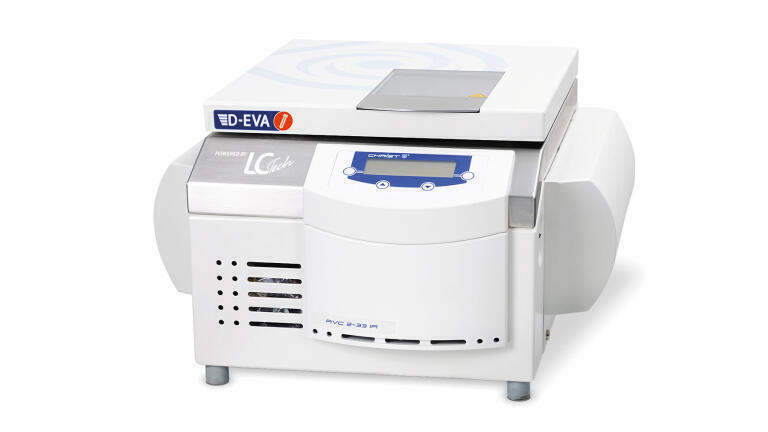

The D-EVA vacuum concentrator, from LCTech GmbH, enables unattended, parallel and fast concentration of several samples with automatic stop at a defined volume between 10 and 150 µL.

During the clean-up of PCB and dioxin samples it is necessary to concentrate samples to a very low volume for subsequent analysis. In order to preserve the analytes, evaporation to dryness urgently has to be avoided. With the D-EVA vacuum concentrator, LCTech, who are well known specialists in the field of automated sample clean-up, has developed the ideal solution for fast and parallel concentration of 1 to 47 samples.

The system evaporates the samples using vacuum and light to a defined volume. A special sensor, designed by LCTech, stops the system automatically at a volume between 10 and 150 µL. Even with rinsing, the subsequent transfer into the insert of a GC-vial is possible. Independent of the sample number or position in the rotor, the results achieved for each sample are the same.

Reliable design and technology prevents unwanted further evaporation after stopping the process as well as eliminating cross contamination.

During concentration, the sample is centrifuged at a moderate speed. This results in a centrifugal force that reliably prevents boiling retardation. Cleaning steps are not necessary during the process.

In addition to the easy-to-use software, D-EVA is supplied with a highly efficient cold trap in which the solvent is re-condensed and collected. Therefore no vapours are produced in the laboratory and the solvents are easy for the user to dispose.

Furthermore, D-EVA requires only little space in the laboratory as only one system is necessary for parallel processing of several samples. For different vials various rotors are available.
