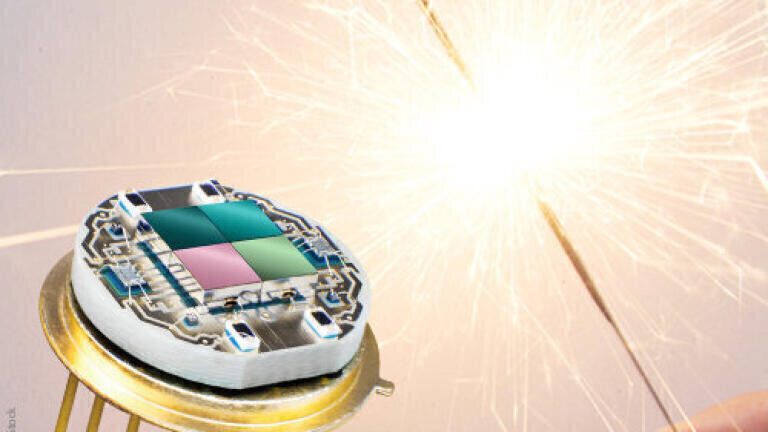

Powerful Multi Channel Detector for Gas Analysis with a Wide Symmetrical FOV

Nov 14 2018 Read 814 Times

The performance of a detector is often defined by two characteristics: The size of its field of view and the size of the pyroelectric elements. The LRM-244 by InfraTec impresses in both respects with excellent figures. You will receive a detector that can literally perform something for you.

Huge angle, huge effect

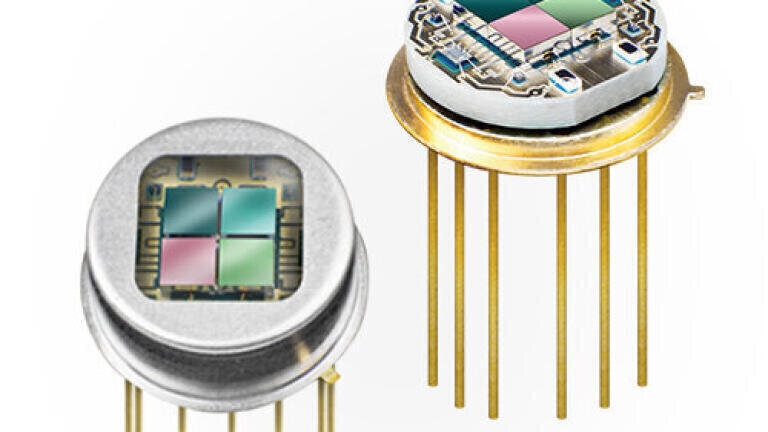

The miniaturised LRM‑244 belongs to the series of PYROMID® detectors and combines four channels in one TO8 housing (Ø 15.2 millimetres). An enormous field of view (FOV) distinguishes the detector from the rest of the LRM series. Its extremely large, symmetrical field of view of more than 90 degrees allows infrared radiation to impinge within the greatest possible angular range. In addition to this, pyroelements, each with a particularly large sensitive surface of 2 × 2 mm2, ensure an ideal signal-to-noise ratio.

Characteristic for a model of the LRM series, the LRM-244 has an aperture window of about 8.5 × 8.5 mm2 integrated in the cap of the housing. The channel filters, each with an area of 2.8 × 2.8 mm2, are protected inside the detector.

Numerous benefits for users

The combination of a large FOV and large-scale pyroelectric elements makes the latest development from InfraTec one of the most powerful detectors in the field of gas analysis. Due to the miniaturised stack design the visual elements are close together. This proves to be particularly beneficial. Thanks to this configuration, the FOV is not only symmetrical but larger than with any other four channel detector. The compact design also opens up the opportunity for users to integrate high-cost components, such as additional sapphire discs, directly into the detector cap. Compared to an external solution, this method saves costs since the integrated sapphire discs require much less space.

First and foremost, the LRM-244 impresses thanks to its features. It opens up new possibilities for all those who are already using a four channel detector in gas analysis and are looking for a more efficient solution. At the same time, users who currently rely on single channel detectors but want to change to a four channel detector, are becoming more flexible. The thermal compensation and optional hermetic sealing additionally facilitate the integration into existing systems.
