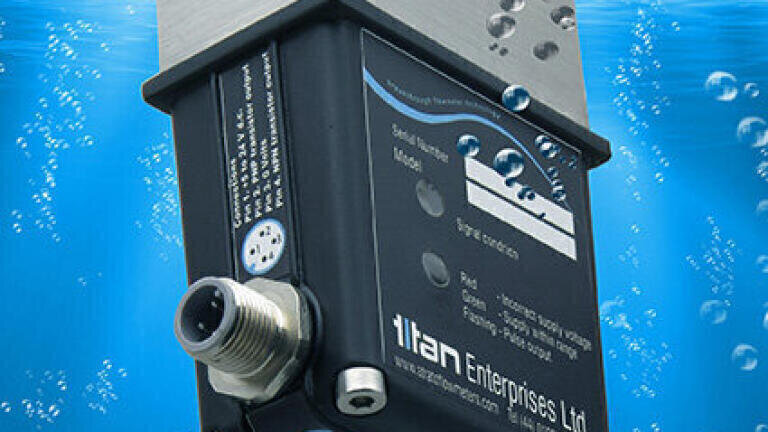

Ultrasonic flowmeter for process measurement and monitoring

Using patented ultrasonic flow meter technology, that enables it to operate accurately over wide flow ranges, the Process Atrato from Titan Enterprises incorporates advanced signal processing system permitting both viscous and non-viscous fluids to be metered.

The Process Atrato is a compact flow meter designed to provide fast response time, high sensitivity and wide flow range linearity - all in an IP65 (NEMA 4X) enclosure. With no moving parts the highly reliable Process Atrato flow meter is a cost-effective device for engineers looking to monitor the flow of liquids in industrial processes.

Features of the Process Atrato include an IP65 sealed enclosure, two frequency outputs of PNP and NPN, two multicolour LED light indicators (for pulse outputs, power malfunctions, and signal strength), and standard M12 four pin sensor connector for electrical connections.

Rated for use up to 65°C and 20Bar, the compact Process Atrato is available in 4 models operating over flow ranges from 2ml / min to 15 litres / min, featuring an accuracy of ±1% over the whole flow range. Each Process Atrato is calibrated with a pre-set 'K' factor so all meters of the same flow range are fully interchangeable simplifying assembly and set-up procedures for OEM manufacturers looking to integrate the flowmeter into their process and control set-up.
