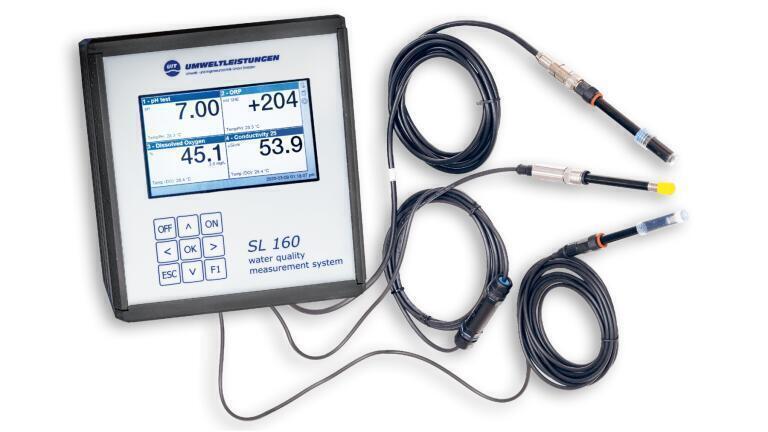

SENSOlab SL 160

Umwelt- und Ingenieurtechnik GmbH Dresden (UIT) introduces new measurement system SENSOlab SL 160. The SENSOlab SL 160 series is ideal for continuous measurements of process parameters. The controller is characterised by simple and intuitive operation and functionality that is kept to the essentials with maximum operational safety. The system comes with a large 5”-TFT display and a plain text menu structure. In addition a software enables configuration, calibration, direct display and recording of measured values ​​on a PC via a USB interface.

Applications:

• In combination with water analysis panel
• Water quality monitoring
• Process monitoring
• Water treatment

Features:

• Cost-efficient measurement of process parameters
• Easy to use (graphical user interface, 5”-TFT display)
• Internal flash memory, MODBUS-RTU, USB
• Extension modules with additional A/D channels available
• IP 54 protection
• External data transmission modules (2G/3G/4G, LoRaWAN™, Sigfox™) available

Sensors

1. Relative pressure sensor: 0... 10 m; 0 ... 20 m; 0 ... 50 m; 0 ... 100 m water level
2. Absolute pressure sensor: 800 ... 2,100 mbar; 800 ... 6,100 mbar; 800 ... 11,100 mbar
3. SAK 254: Range according to specific path length
4. Conductivity sensor: 0 ... 0.2/2/20/500 mS/cm; resolution up to 0.1 μS/cm
5. pH: 1 ... 14; resolution ΔpH = 0.01
6. Redox potential: –2,000 ... +2,000 mV, resolution 1 mV
7. DO [O2] – luminescence: 0 ... 40 mg/l O2, resolution 0.02 mg/l O2
8. Free chlorine: Range 0 ... 2/10 mg/l, application area pH 4 ... 12, amp. sensor, other ranges on request
9. Turbidity: 0 - 25/125/500/2500 NTU
10. Ion selective sensors: Chloride, nitrate, ammonia and bromide – specification upon request

  SENSOlab SL 160

1.   Basis system: SENSOlab SL 160 – aluminium case W x H x T 166 x 184 x 70 mm without connectors
2.   Display / keypad: 320 x 480 pixel, 5“-TFT display: 110 x 67 mm, keypad
3.   Protection degree: IP 54
4.   Power supply: 110-230VAC/24 VDC
5.   Memory / Interface: Internal flash memory; MODBUS RTU; USB
