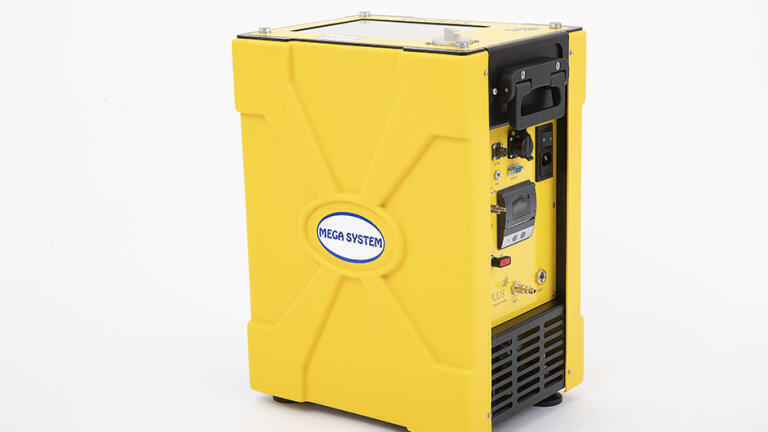

Apis Plus: Advanced Isokinetic Sampling with Seamless Bluetooth Integration

In the demanding world of industrial emissions monitoring, precision, automation, and connectivity are essential. Apis Plus, the latest evolution in automatic isokinetic samplers, offers all of these—setting a new standard with its integrated Bluetooth functionality that simplifies field operations, enhances safety, and streamlines data collection like never before.

Wireless Control and Monitoring via Bluetooth

One of the standout features of Apis Plus is its ability to connect wirelessly to external devices via Bluetooth, enabling technicians to monitor and manage sampling operations remotely. This wireless connection allows for real-time access to critical parameters such as flow rate, velocity, and temperature, without having to stand next to hot ducts or hard-to-reach sampling points.

Smart Data Acquisition and Integration

Beyond its wireless capabilities, Apis Plus is packed with advanced functions. It is compatible with Mega System E1 Series analyzers, enabling automatic acquisition of oxygen (PARAMAGNETIC) and carbon dioxide (NDIR) sensor data. This integration allows for real-time calculation of effluent gas density and dynamic adjustment of isokinetic sampling flow—an important feature for ensuring compliance with environmental standards.

Moreover, the instrument supports 4-20 mA / 1-10V analog signal input, enabling it to capture and record data from third-party analyzers. All collected data, including temperature, pressure, and gas concentrations, are stored in the sampling report and can be exported via Bluetooth or USB in TXT or CSV format for further analysis.

Reliable Sampling, Even in Challenging Conditions

Apis Plus ensures isokinetic sampling in full compliance with EN ISO 16911-1, thanks to its high-precision electronic flow regulation system. It compensates for any pressure losses due to filter clogging and maintains stable sampling flow—crucial when dealing with variable stack velocities or demanding conditions.

It features a reinforced shockproof metal frame, easy-to-replace dust filter, and condensate collection system, making it suitable for rugged industrial environments. The system’s pneumatic circuit operates under slight overpressure, with a vacuum-tight pump and a volumetric dry-gas meter offering less than 2% uncertainty. Integrated temperature sensors provide additional precision, with less than 1% measurement uncertainty.

User-Friendly Interface and Data Management

The 10-inch touchscreen display offers intuitive access to settings, measurement results, and configurations. Operators can define sampling intervals (from 10 to 300 seconds), manage sample IDs, store configurations for various chimneys or ducts, and even perform sensor calibration using integrated software.

In the event of a power failure, the buffer battery prevents data loss, while Bluetooth and USB options allow for instant data sharing, analysis, or certification.

Apis Plus isn't just a sampling device—it's a comprehensive emissions monitoring platform. With its robust build, precision controls, and seamless Bluetooth connectivity, it enables safer, smarter, and more efficient stack sampling operations. Whether you're meeting regulatory requirements or optimizing environmental performance, Apis Plus provides the control and flexibility professionals need in the field.
