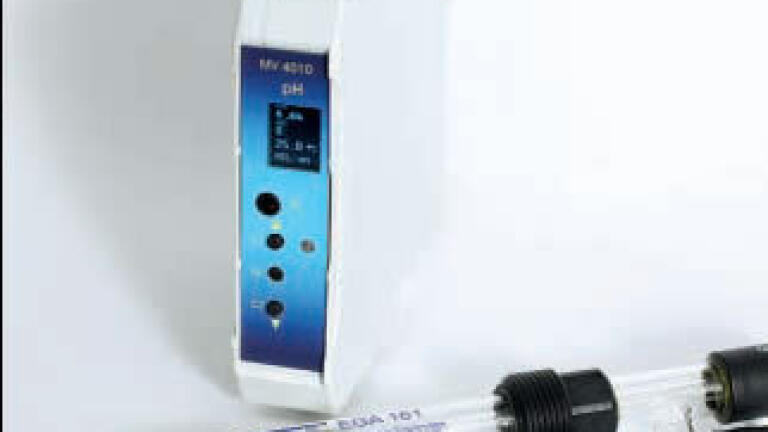

New Transmitters MV 4000

Intelligent Transmitter MV 4000 from Sensortechnik Meinburg (Germany) for all parameter in modular case front 22.5 mm for mounting top hat rail with a display for measuring value,

temperature and calibration instructions, a USB interface. Networking between MV 4000 and previous series MV 3000 + AZ 3000, cost efficient measuring of process parameter and

connection with PLC, data loggers, - printers or visualisation systems The transmitters MV 4000 are excellently suited for cost-efficient continuous measurements of one or more process parameters in connection with process control units, data loggers, -printers or visualisation systems.

The transmitters are available for pH-value, redox, conductivity (2-pol, 4-pol), oxygen, free chlorine, and ion concentrations. Each transmitter has a display for 3 measuring values, relay status and calibration instructions. It substantially simplifies measuring value checks, calibrations and makes each transmitter to a stand-alone measuring instrument. One transmitter has two analogue outputs 0(4) … 20 mA or 0 … 5 V and one relay output. The present MV 3000 and the new MV 4000 transmitters can be connected together with the display unit AZ 3000. In this way

the customer gets a complete multi-parameter measuring system inclusive data logger and fieldbus interface RS-485. Simple software features configuring, calibration as well as displaying and recording of measuring values directly on PC using USB interface.
