Water/Wastewater

  • Simple and convenient flow measurement suitable for a variety of media and processes

Simple and convenient flow measurement suitable for a variety of media and processes

Nov 29 2019 Read 396 Times

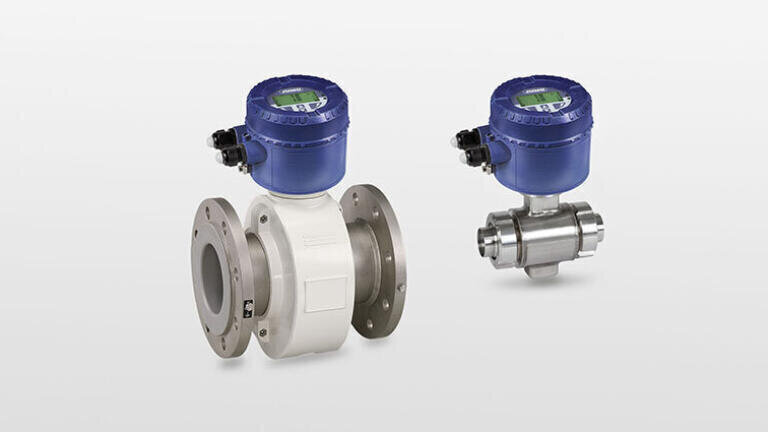

2 new devices from JUMO provide a simple introduction to the world of magnetic-inductive flow measurement. JUMO flowTRANS MAG S10 was designed for industrial standard applications in nominal widths from DN 3 to DN 2000 and the flowTRANS MAG H10 for hygienic applications in nominal widths from DN 3 to DN 100. Both devices can be used in liquid, conductive media with different properties such as viscosity, concentration, and density.

The universal transmitter electronics for various voltage supplies are new. Uncomplicated cabling enables a simple and fast startup. Diagnostic messages can be displayed in plain text on the illuminated display. The LCD display can be replaced if necessary.

For both versions, the conductivity of the measurement medium must be at least 20 µS/cm. The maximum temperature is as high as 130 °C, depending on the version. Both flowmeters are available either as a compact device or with a separate transmitter.

Thanks to a wide selection of lining materials, nominal widths, and measuring electrode materials JUMO flowTRANS MAG S10/H10 devices are suitable for a variety of processes (such as in the CIP/SIP field). Both devices can also be used in corrosive and abrasive media. JUMO flowTRANS MAG S10 can even be used in slurries. In all applications the flowmeters make an impression with their high degree of measuring accuracy and short response times.

Since the sensors have no moving parts they are less subject to wear compared to other measuring principles and therefore require less maintenance.
