Measure up to 4 Parameters Simultaneously with New Digital Transmitter
Jul 22 2016

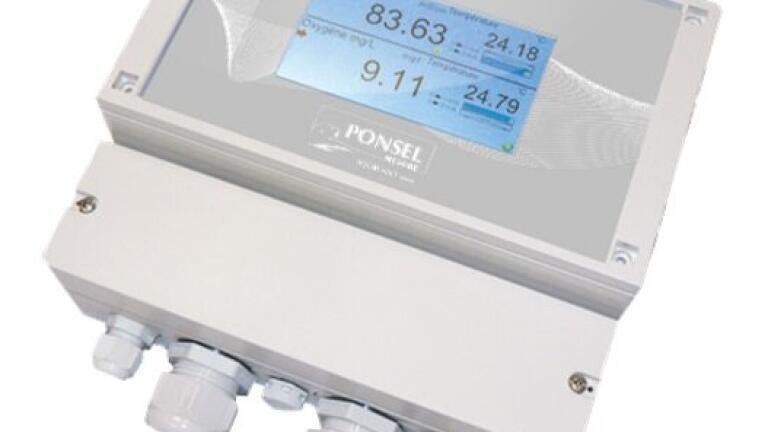

The new digital transmitter ACTEON 5000 was designed to provide the possibility of combining the connection of digital sensors of AQUALABO (France) CONTROLE – PONSEL MESURE range for monitoring parameters pH, annular ORP, temperature, dissolved oxygen ( optically ), conductivity, salinity, turbidity (NTU , mg/L), MES (g/L), sludge blanket (%) ... . as well as analogue sensors (0-10 V, 4-20 mA) type level measurement .
The transmitter offers: 2 digital sensors inputs, 2 analogic inputs (0-10 V/ 0-20 mA power supply 12 V), 2 relay inputs, 2 analogic outputs (0/4 -20 mA), and 2 relay outputs (NO/NF).
The data measured by the sensors connected to the transmitter are registered in the ACTEON 5000 and exported in csv format (via USB key).
The ACTEON 5000 is associated with a wide range of digital sensors resistant to disturbance: preamplifier integrated sensor and digital signal processing
All calibration data regarding the history, users and measures are handled directly in the sensor for traceability and extreme reliability measures.
Owing to over 60 years of experience in the conception of physicochemica measurement sensors, digital sensors of the DIGISENS range are robust and specially designed for field applications continuous measurement.
Applications include: Control of aeration tank in wastewater plant, drinking water (control raw water), fish farm tanks monitoring, and industrial waste water treament
