Highly Accurate Humidity and Temperature Measurement for Demanding Climate Control

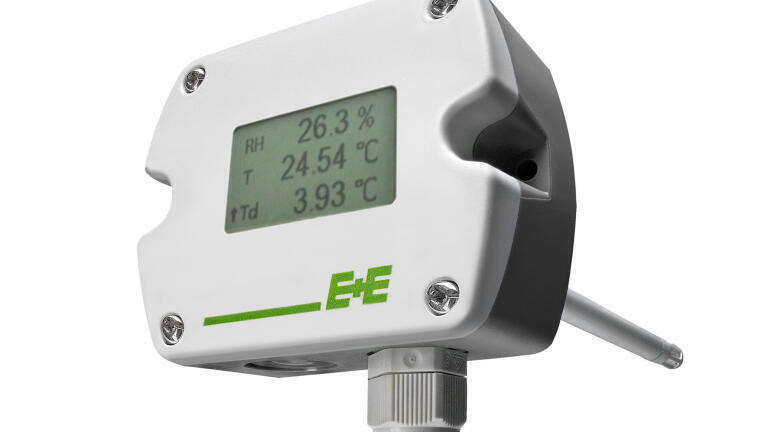

The new EE210 transmitter from E+E Elektronik (Austria) has been developed for highly accurate measurement of relative humidity and temperature in demanding climate control applications. Excellent temperature compensation ensures outstanding accuracy over the entire temperature working range.

Besides relative humidity and temperature, EE210 calculates further physical quantities such as dew point temperature, absolute humidity and mixing ratio. Two of the measured and calculated values are available on the freely configurable analogue voltage or current outputs.

The combination of completely encapsulated measurement electronics inside the sensing probe and HCT01 humidity sensor with E+E proprietary protective coating enables the use of the EE210 even under harsh and aggressive environmental conditions.

The innovative enclosure of the EE210 provides outstanding protection against contamination. Thanks to the external mounting holes the housing remains closed during installation and so the electronics is protected from construction site pollution or mechanical damage. At the same time the installation costs are minimized.

Up to three individually selectable measurement values can be shown simultaneously on the optional display. The smooth cover surface avoids accumulation of dust in protruding edges.

EE210 transmitters are available for wall or duct mounting. Typical applications are agriculture (stables, incubators, hatchers, green houses), storage rooms, cooling chambers or indoor pools.
