Preventing environmental testing problems associated with filtration

May 10 2017 Read 884 Times

In environmental testing, filtration is commonly used to remove insoluble particles – but how do you prevent problems such as back pressure build-up?

Preparation of water samples for environmental monitoring assessment often involves dealing with insoluble particles that need to be removed by filtration.

For example, water samples taken for heavy metal or organic compound testing can differ greatly, ranging from clear surface water to water containing dissolved sediment, sludge, and/or soil.

Some of these samples contain high levels of particulates that can cause filtration difficulties, such as back pressure build-up in a syringe. In this post, we talk about how prefiltration can save time, waste, and your thumbs.

Why is filtration necessary?

Filtration should yield a sample free from insoluble particles, ready for analysis without negatively impacting the instrumentation. Filters capable of handling samples with a high particulate content simplify this process.

Back pressure buildup

When using a syringe filter to prepare high-particulate samples, rapid clogging of the filter device is a common occurrence. Dealing with back pressure will almost certainly cost time to deal with the challenging sample, money if multiple filters need to be used to filter the sample, and potentially lost sample. Rarely, the filter membrane can be damaged from excessive pressure and compromise the quality of the sample.

From an ergonomic point of view, daily use of a syringe filter with significant back pressure can lead to hand strain and painful thumbs; then painful forefingers; then whichever fingers you have left to press the plunger…

Alleviating pressure

So, what can you do about back pressure build-up? One method to minimise these problems is to use a series of different filters - starting with a large pore size to remove the fraction of larger particles before successively reducing pore sizes - until you remove all the remaining particles.

However, the use of multiple filters for each sample means using more consumables, which can be a bit wasteful in terms of cost and precious lab time. Hold-up volume, the amount of sample that remains in the filter, is also a consideration. When you use multiple filters, you multiply the small fraction of sample you cannot recover.

Stacked filters

Designed to tackle hard-to-filter samples, a stacked syringe filter consists of multiple glass fiber layers with different porosities, enabling, for example, smooth sludge and soil filtration.

This multilayer filter approach successfully filters all particles of the specified size range without build-up of back pressure or clogging. This design makes stacked filters well suited for the high particulate water samples taken for environmental monitoring, and for saving your thumbs.

We design our GD/X filter devices with these common issues in mind. Watch our short video on solving your back-pressure problems.

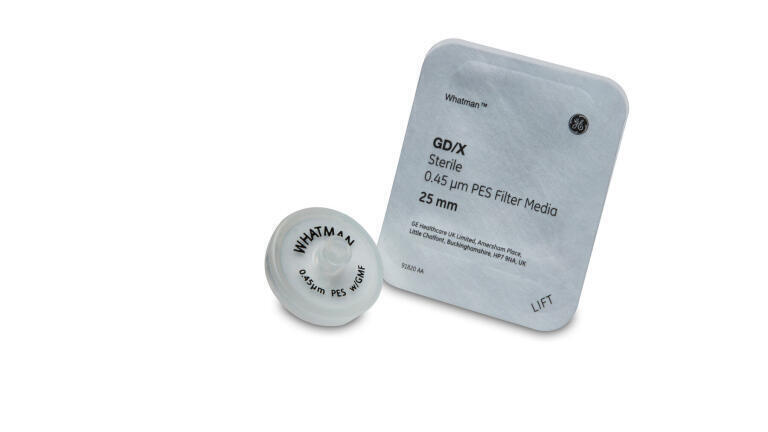

The Whatman GD/X range of filters integrates prefiltration stacks, with up to three layers for removing large particles. These filters are available in more than ten different membrane materials, including regenerated cellulose, and in pore sizes ranging from 5 µm down to 0.2 µm.

Request a sample GD/X filter now or use our Whatman Filter Selector App to see what would fit best for your filtration needs.
