  • Why Customers Chose the Gas Divider

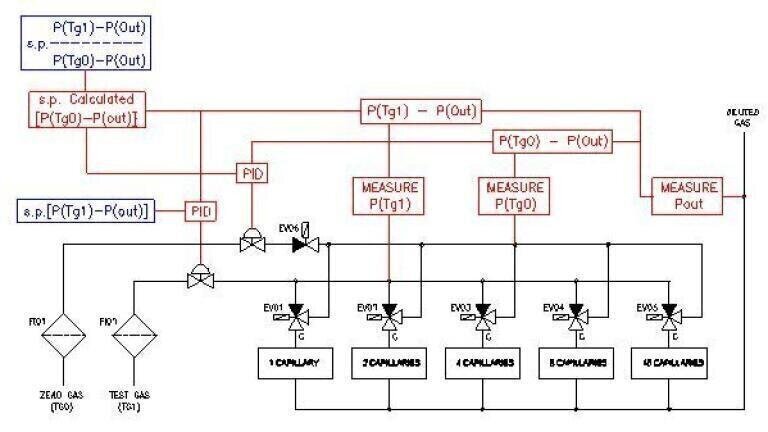

    Functional diagram of BetaCAP30

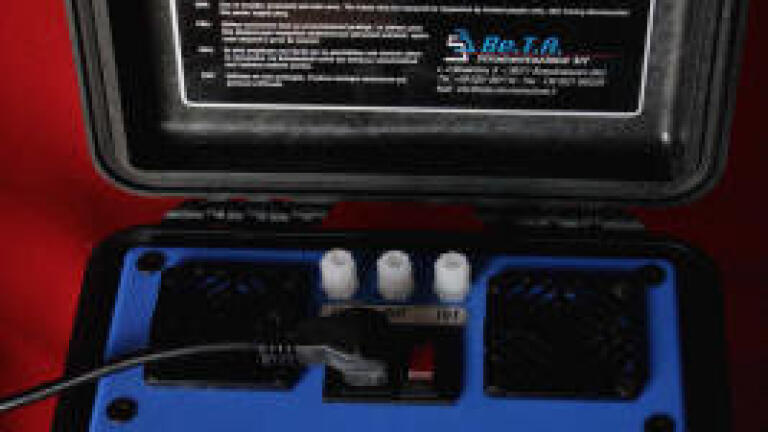

  • Outside view BetaCAP30

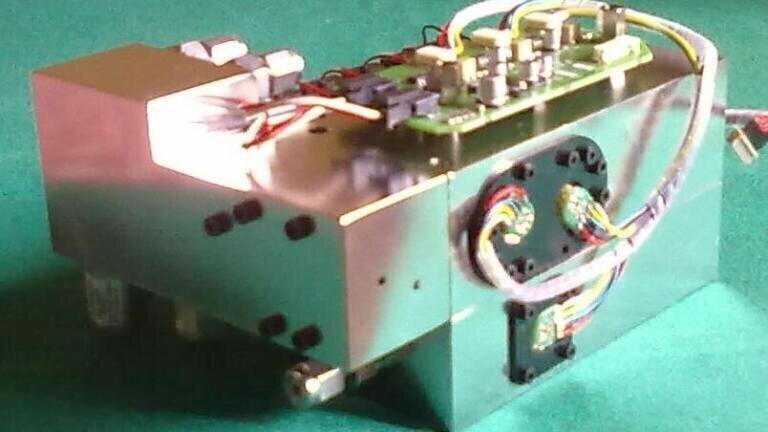

  • Internal view of "all steel" version BetaCAP30

Why Customers Chose the Gas Divider

Aug 28 2013

The Gas Divider from BE.T.A. Strumentazione (Italy) are: Very compact and come with a rugged case with a handle (270 x 250 h 180mm - weight 6 kg) IP67 protection during transport. Gas contacted materials highly corrosion resistant; Right price to compete with less featured devices; 30 capillaries for 31 dilution rates: this allows testing of gas concentrations up to five times the gas analyser span, keeping till possible in this case 6 points linearity tests; Equal capillaries construction: this allows very high accuracy. Additional compensation of certified errors; Electronic monitoring of both inputs and output pressures (1 hPa resolution); Electronic pressures PID control very accurate (the more requested option); Direct acquisition of 3 analogue signals from gas analysers: when the optional software is used, this allows automatic testing and linearity test reporting according to EN 14181 requirements; Choice between two output flow ranges: 0.5…2 L/min. or 1.5…6 L/min. (selection with the order); Very easy compensation of different viscosities in input gases (just required for high concentrations).
