Compact and Complete Gas Conditioning Unit

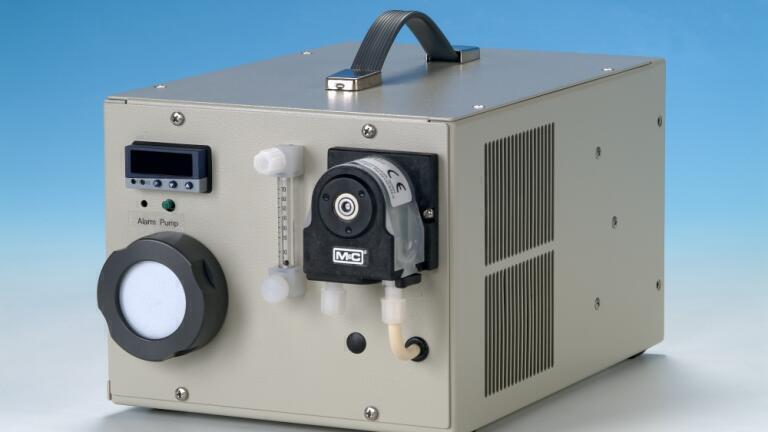

M&C TechGroup is an established leader in the provision of high quality gas sampling and conditioning solutions for the process gas analysis industry. The M&C CSS-M is a compact, lightweight and portable sample gas conditioner combining effective gas cooling, fine particulate filtering, flow regulation, moisture detection and sensors for status monitoring. Ready for use in minutes from switch-on, there is easy access to all active components including adjustable cooler temperature between +2oC and +15oC. Weighing in at only 11kg, and measuring only 177x220x300mm, it is ideal for portable gas measurements and R&D applications where many measurements need to be taken from different process locations.

For fixed gas detection systems, where there is sampling from humid, corrosive and dusty atmospheres, the CSS-M/W offers a neat solution. This wall-mountable version makes system

integration and panel building easier as its compact construction only takes up little space. This minimises time-consuming procurement, assembly and installation of individual components.
