A Simple Combination of Point Level Measurement and Communication Technology
May 16 2008

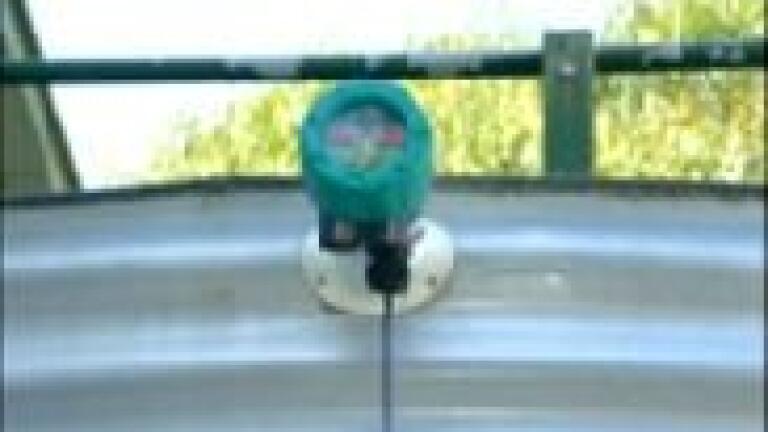

The Gladiator Smart Admittance Level Switch is designed to detect the
level of liquid, slurry or powder in a tank or vessel. The unit measures the capacitance or âadmittanceâ between a probe and the wall of the container. As the level of the product rises to the level of the probe, or drops below that level, the capacitance measured at the probe changes.
The Gladiator detects this change and produces an output. The Gladiator
canmonitormaterials with a wide range of dielectric constants, so the system is applicable to a large variety of liquids, slurries and powders.
Hawk has designed the unit to operate in tough industrial environments.
It is simple to set up and calibrate, and has excellent temperature stability.
Several probe types are available tomeet specific application requirements, and all types are resistant to product build-up.
The Gladiator communicates using Modbus, HART, or Profibus protocols.
A remote amplifier can be positioned up to 500 m (1640 Ft) away from the
unit. The HawkLink GSM/CDMA communication option allows a technician to
commission, calibrate, test, or check the output of the unit from anywhere in the world.
Gladiator Switches are suitable for wide variety of production situations. For example, the instrument can monitor liquids applications in the petrochemical, food and beverage, and water and wastewater industries. The Gladiator can alsomonitor levels of dry powderedmaterial for industries including cement, glass, pharmaceutical, mining and minerals, power generation and fertilizer.
