Motorised Filter Wheel Extends Thermal Imaging Capabilities

Feb 19 2013

The FLIR X8000sc / X6000sc thermal imaging camera series contains a 4-slot motorised filter wheel with automatic filter recognition and measurement parameter adjustment. The removable filter holders also contain an integrated temperature probe for improved measurement accuracy.

Materials that are transparent or opaque to infrared (IR) wavelengths present problems in non-contact temperature measurements using a thermal imaging camera. With transparent materials, the camera sees through them and records a temperature that is a combination of the material itself and that which is behind it. In the case of when a thermal imaging camera needs to see through an opaque material to measure the temperature of an object behind it, signal attenuation and ambient reflections can make accurate temperature reading difficult or impossible. In some applications, an IR filter can be placed in the camera's optical path to overcome these problems.

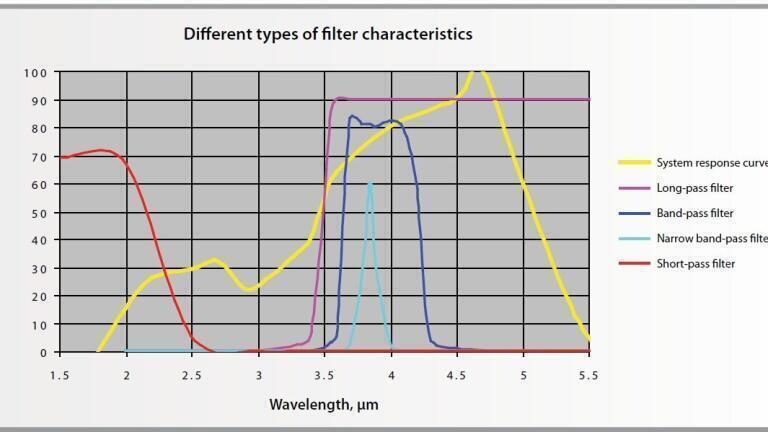

With the FLIR X8000sc / X6000sc thermal imaging camera series the filter wheel enables application specific filters to be inserted between the lens and the focal plane. Each rotation of the filter position allows for a new spectral response to be measured and as a result of these calibrated filters - the FLIR X8000sc / X6000sc can be extended into application areas that other thermal imaging cameras may struggle with.

Further detailed information on how filters extend the measurement capabilities of thermal imaging cameras is contained in Chapter 4 of FLIR Systems 'The Ultimate Infrared Handbook for R&D Professionals' which may be downloaded from http://j.mp/15cedfT

Designed to provide ultra-sensitive and accurate measurements, ease of use and the most advanced connectivity in a compact, yet full featured thermal imaging camera - FLIR X8000sc / X6000sc thermal imaging camera series are ideal for scientists and R&D professionals working on the most demanding applications. Providing high-definition images of 1280 x 1024 pixels, FLIR X8000sc / X6000sc series thermal imaging cameras will reveal the faintest of thermal anomalies and allow you to see the smallest of details. Incorporating the most advanced detector technology - FLIR X8000sc / X6000sc series thermal imaging cameras can detect temperature differences smaller than 25mK (18mK typically). Using FLIR's proprietary "lock-in" facility is able to process temperature differences as small as 1mK can be made clearly visible. Designed to unlock the secrets of almost any application a FLIR X8000sc / X6000sc series thermal imaging camera can measure temperatures up to 3,000º C with an accuracy of +/- 1ºC or +/- 1%.
