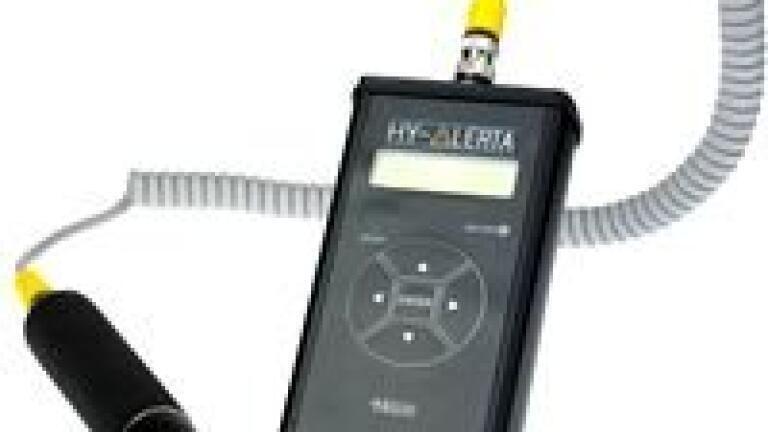

H2scan Corporation recognizes the importance of detecting and locating hydrogen leaks as quickly as possible. H2scan`s HYALERTA â„¢ 500 Handheld Hydrogen Leak Detector is the industry`s most versatile, portable hydrogen leak detector able to respond to the widest range of hydrogen gas concentrations without the need of any peripheral equipment. The sensor probe has a unique visual LED array that will effectively help navigate to the source of a hydrogen leak where hydrogen gas is produced, used, transported or stored.
With two sensing elements on the same semiconductor die, the HY-ALERTA™ 500 can detect hydrogen leaks as low as 15 ppm and will not saturate or be destroyed when detecting high concentrations of hydrogen up to 100%. The flexible cable allows the sensor probe access to virtually all potential leak sources. It has an operating time of 10 hours and an operating temperature range of 0ºC to 45ºC.
H2scan`s hydrogen specific sensing systems based on a patented "Chip on a flex" technology are able to detect and measure hydrogen without false readings or expensive support equipment required. The sensing systems are able to detect hydrogen in air down to 15 ppm concentration over a wide range of temperatures without cross-sensitivities to other gases. The ability to operate with or without the presence of oxygen with no interference from CO, sulfur or chlorine separates H2scan from all other in-line measuring technologies.
