Trace gas detection can benefit from advances in chip-scale optical modulators

Breakthrough promises ultra-high-resolution spectroscopy with wide variety of applications

A new study published by the Chinese Society for Optical Engineering introduces a compact optical modulation platform that can significantly improve the resolution of spectroscopic systems used in trace gas detection and environmental monitoring.

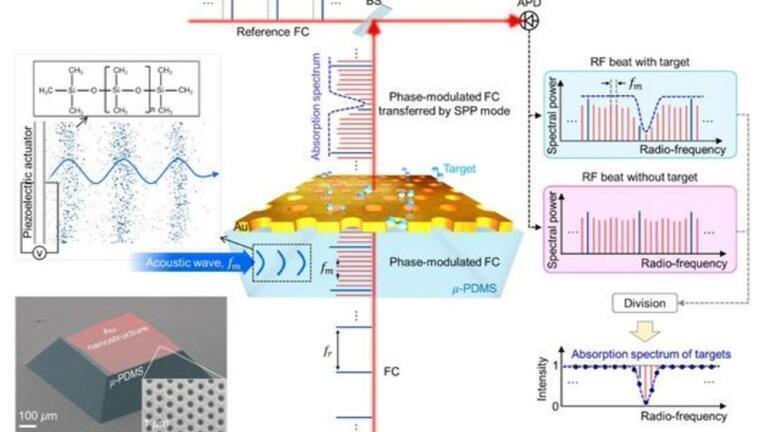

The research demonstrates how a chip-scale acousto-optic phase modulator made from polydimethylsiloxane (PDMS), integrated with plasmonic nanostructures, can generate sub-megahertz (sub-MHz) frequency combs, enabling real-time, high-resolution spectroscopic analysis in a much smaller footprint than conventional systems.

How this new technology works

Trace gas detection is essential for applications such as air quality assessment, greenhouse gas monitoring, and industrial emissions control.

These use cases require the ability to resolve very narrow absorption features, something traditional grating-based spectrometers and typical frequency comb systems struggle to achieve without large, complex, and delicate equipment.

The new PDMS-based phase modulator addresses this limitation by introducing low-frequency acoustic modulation to finely control the spacing of optical frequency combs.

This results in interleaved combs with much tighter frequency spacing, enabling detection of subtle spectral features associated with trace gases.

Application in trace gas detection

PDMS offers several material advantages for this application: low acoustic velocity, high elasto-optic coefficient, and broadband optical transparency from the visible to mid-infrared.

Its low elastic modulus allows strong optical phase modulation with modest acoustic energy.

The chip-scale device is also compatible with nanofabrication methods, allowing integration with plasmonic nanostructures that enhance the interaction between light and target molecules, particularly those adsorbed near metal surfaces.

The system demonstrated a fourfold improvement in phase modulation efficiency within the 0.2–2.0 MHz range and achieved consistent performance regardless of modulation direction.

Integrated with a Fabry-Pérot interferometer, the platform resolved spectral features at sub-MHz resolution.

These capabilities are directly relevant to the detection of atmospheric pollutants, volatile organic compounds, and other environmentally significant gases.

By shrinking high-resolution spectroscopic functionality to a chip-scale device, this platform offers a promising path toward portable, field-deployable systems for environmental sensing.

It enables sensitive, high-fidelity detection without the size, complexity, or power requirements of traditional spectrometers, making it suitable for real-time diagnostics in both urban and remote environments.
