FID: the VOC emissions monitoring reference method - for over 50 years!

The Flame Ionisation Detection (FID) method was first developed in the 1950s for the laboratory analysis of organic chemicals. Later, when environmental regulations began to limit the emissions of volatile organic chemicals (VOCs) in the 1970’s and 1980’s, the FID method was adapted for emissions monitoring. Signal Group was one of the first companies in the world to develop VOC emissions analysers, and in the following article the company’s Managing Director, James Clements, will explain why FID became the reference method, and why it lasted the test of time.

Background

Organic chemicals have always been widely used in industrial processes, but awareness of the harmful effects of VOCs on health and the environment did not become significant until the 1970s. At that time, President Richard Nixon presented proposals on environmental protection which included the establishment of a federal Environmental Protection Agency (EPA). This led to the development of maximum allowable concentrations for pollutants, many of which were subsequently adopted around the world.

VOCs are common constituents in the emissions of processes that involve petrochemicals, paints, coatings, adhesives, waxes, disinfectants and cleaning chemicals. In many of these processes, solvents play a major role and the release of VOCs represents a risk to health and the environment. Similarly, combustion processes give rise to VOC emissions, particularly where combustion involves the use of an organic fuel. This includes fossil fuels such as petrol, diesel and oil, as well as wastes and biofuels.

By monitoring total organic carbon (TOC) concentration in emissions, process operators can demonstrate compliance with relevant legislation. However, such measurements also provide insights for process optimisation, because, for example, the presence of organic compounds may be an indicator of incomplete combustion. In addition, TOC is frequently measured post-abatement in order to measure abatement efficiency.

Why was FID chosen as the reference method for VOC emissions monitoring?

It is normal practice for regulators to specify a standard reference method for monitoring pollutants, so that compliance measurements are accurate and directly comparable with the limits, and with measurements from other process operators. FID has been widely acknowledged as the reference method for VOCs for over 50 years, and there are many reasons for this:

1. Already proven - initially developed as a detection method for laboratory Gas Chromatographs, FID was already well-established as a reliable technology for the detection of hydrocarbons. Adaptation for measuring VOC emissions was therefore relatively straightforward. As a consequence, Signal Group has been developing and supplying thousands of FID analysers all over the world for almost as long as FID has been the reference method.
2. Cost – in comparison with methods such as mass spectrometry (MS) or Fourier transform infrared spectroscopy (FTIR), FID is relatively simple and therefore less costly to manufacture. This is important because, globally, the number of processes that generate VOC emissions is enormous, so it is important that reference method technology is affordable for the organisations, large and small, that are required to monitor their hydrocarbon emissions, or that need to monitor for other purposes such as process control or abatement management.
3. Specificity – the FID detection method is specifically designed to detect carbon-hydrogen (C-H) bonds, making it highly selective for organic compounds. Unlike some other detection methods, FID does not respond significantly to inorganic gases which helps to minimise interference from non-VOCs, providing more accurate and reliable emissions measurements.
4. High sensitivity – the FID method is highly sensitive to hydrocarbons, which makes it ideal for even low-level measurements, particularly as environmental regulations become more stringent. Signal Group’s latest FIDs, for example, offer measurement resolution down to 0.01ppm. It is also important to note that FID sensitivity is much less variable than other techniques. Photoionisation detection (PID) for example exhibits widely varying response factors for individual hydrocarbons, rendering it inappropriate for the measurement of hydrocarbon mixtures. In contrast, FID is ideal for the measurement of total hydrocarbon content, whether the hydrocarbon is an individual compound or a mixture of species.

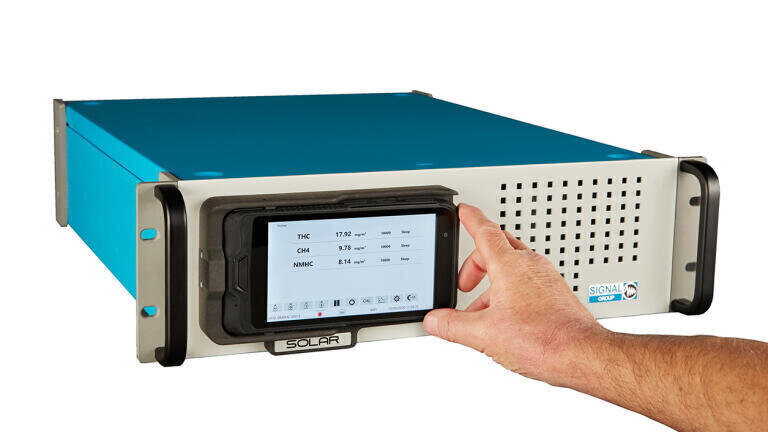

5. Wide range – in addition to their high sensitivity, FIDs are also able to make measurements at significantly higher ranges. The S4 Solar FID for example, has a number of user-selectable ranges, all the way from 0 to 1ppm with a resolution of 0.01ppm, up to 0 to 300,000 ppm with a resolution of 1ppm.
6. Fast response - FID analysers provide an almost immediate response to a sample gas, which is extremely important for regulatory compliance, particularly with processes emissions that can vary significantly from one minute to the next. The typical response time for Signal’s latest FIDs can be less than 1 second. This is also important for process control and engine emissions testing.
7. Stability and reproducibility - decades of experience in a wide variety of applications have shown FID’s ability to produce stable measurements in the long-term. Similarly, when identical FID units measure the same sample gas, the same results are given. This is an extremely important feature of standard reference methods because it provides confidence in measurements – for both the user and the regulator.

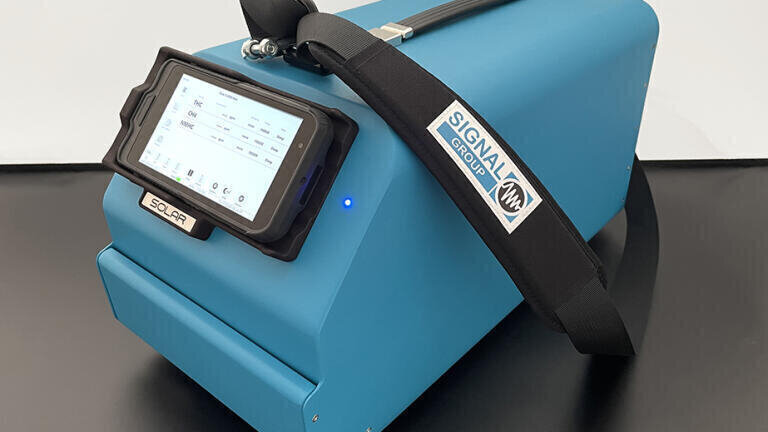

8. Applicable to continuous monitoring – many VOC emissions regulations necessitate continuous monitoring, so an important feature of FIDs is their compatibility with Continuous Emissions Monitoring Systems (CEMS). Nevertheless, FIDs should be sufficiently flexible to be suitable for discontinuous monitoring with portable instruments. Consequently, Signal Group developed lightweight ruggedised versions of its FID technology so that, where regulations permit, a single portable FID can be used to measure the VOC emissions of multiple sources – at the same site or at different sites.

FID development – a UK manufacturer’s perspective

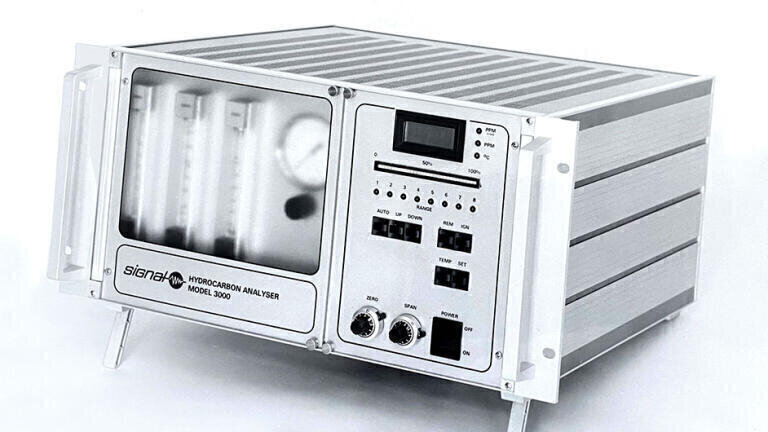

Although the latest range of FIDs from Signal Group feature a fourth-generation detector, it is truly remarkable that the core measurement technology has changed very little since the company first developed a FID in the 1970s. The main reason for this is that each generation of Signal’s FID has featured the company’s unique precision-machined monobloc detector which guarantees uniformity of production in a compact, leak-free design.

Most of Signal’s FID development work has therefore focused on issues outside of the core technology. These issues have either been application specific, or have addressed ease of operation, connectivity and data management.

In addition to fixed and portable FIDs, Signal has developed both hot and cold FIDs for ambient or post-combustion applications. Dual FIDs have also been developed, featuring two FIDs in one instrument, so that methane and non-methane hydrocarbons (NMHCs) can be monitored simultaneously. This is an important differentiation because methane’s primary significance is as a greenhouse gas (around 30 times more powerful as a greenhouse gas than carbon dioxide), whereas NMHCs contribute to the photochemical generation of smog and atmospheric ozone. So, methane emissions are important because of their role in climate change, whereas NMHC emissions affect air quality and health.

Development work at Signal has also focused on automation, datalogging, sample conditioning and advanced calibration tools. In addition, the most recent generation of instruments features a wireless tablet capable of connecting via Wi-Fi to the analyser from a distance of up to 50 metres. This provides users with the ability to view live data in a different location, and even manage datalogging, alarms and calibration from a distance.

In addition, all Series IV instruments, including the new SOLAR XPLORE, have their own IP address, and are compatible with 3G, 4G, 5G, GPRS, Bluetooth and satellite communications. This provides users with simple and secure access to their analysers at any time, from anywhere.

In summary, Signal’s first FID analysers in the 1970s were able to provide accurate consistent measurements for total hydrocarbons. Now, thousands of instruments later, their successors are still producing the same reliable data, but with built-in tools and accessories that make the monitoring process easier and less prone to human error. Employing the standard reference method, supported by over 50 years of rigorous work in every conceivable application, FID has stood the test of time, offering operators and regulators confidence and trust in VOC measurements.
