Differential Pressure Sensor Rounds Up HVAC Portfolio

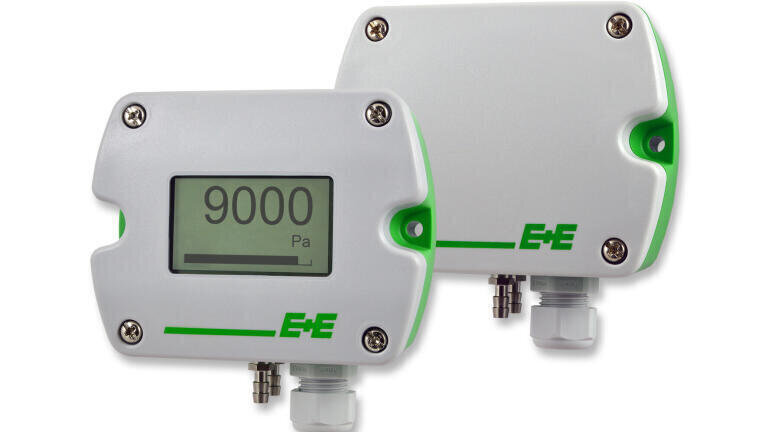

The EE600 differential pressure sensor extends the product portfolio for HVAC and building automation of the Austrian sensor manufacturer E+E Elektronik. The transmitter is available with full scale 1,000 Pa (4 inch water column) and 10,000 Pa (40 inch WC) with each four selectable measurement ranges. The piezo-resistive pressure sensing element ensures highly accurate and long-term stable measurements. The innovative enclosure facilitates mounting and minimizes installation costs. An optional graphic display shows the actual measured data.

The EE600 is dedicated for the measurement of differential air pressure in ventilation and air conditioning systems or for filter monitoring. Additionally, it can be employed for all non-flammable and non-aggressive gases.

Four measuring ranges (0...250 / 500 / 750 / 1000 Pa or 0...2500 / 5000 / 7500 / 10000 Pa) can be selected via DIP-switches on the electronics board. This makes the EE600 particularly versatile. The output signal and the response time can also be set directly on the board. With push buttons, the user can easily perform a zero and span point adjustment.

The EE600 offers voltage and current output signals, both simultaneously available at the spring terminals. The device can be fitted with a large graphic display. The display backlight and the pressure unit (Pa, mbar, inch WC, kPa) can also be set via DIP-switches on the electronics board.

Same as all other HVAC measuring instruments from E+E Elektronik, the EE600 features a robust IP65/NEMA 4 enclosure, which facilitates fast and easy installation. Due to external mounting holes, it can be mounted with closed cover. This saves time and minimises installation costs. In addition, the electronics is protected against construction site pollution during installation. For US requirements the enclosure provides a knockout for a 1/2" conduit fitting.

The EE600 pressure sensor rounds up the existing E+E offer for humidity, temperature, CO2 and air velocity. E+E Elektronik is thus a single source of measuring devices for all HVAC-relevant measurands.
