Flexible Multilevel Monitoring System

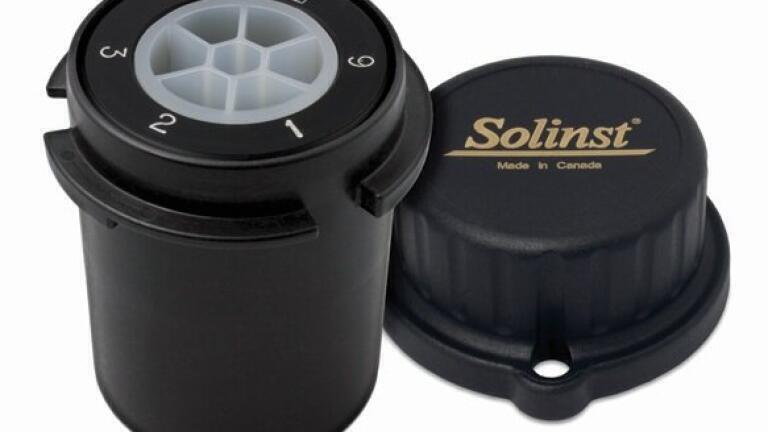

Obtain superior quality subsurface data using a Solinst (Canada) Multilevel System. CMT Systems monitor multiple depth-discrete zones within a single borehole. CMT (Continuous Multichannel Tubing) is polyethylene tubing with three or seven separate channels running its length. Monitoring zones are manually constructed, one in each channel, at different vertical intervals.

CMT Multilevel Systems are inexpensive and easy to install. In-field design flexibility allows the number of monitoring ports, port locations, and monitoring strategy to be finalised right on site. Monitor up to 7 zones in the 1.7" (43 mm) System and 3 in the narrow 1.1" (28 mm) System. Depth-discrete groundwater data provides assessors with a better understanding of the three-dimensional flow and distribution of contaminants in the subsurface.
