Accurate, Digital, Battery Powered and Waterproof Tank Monitor
Feb 06 2018 Read 527 Times

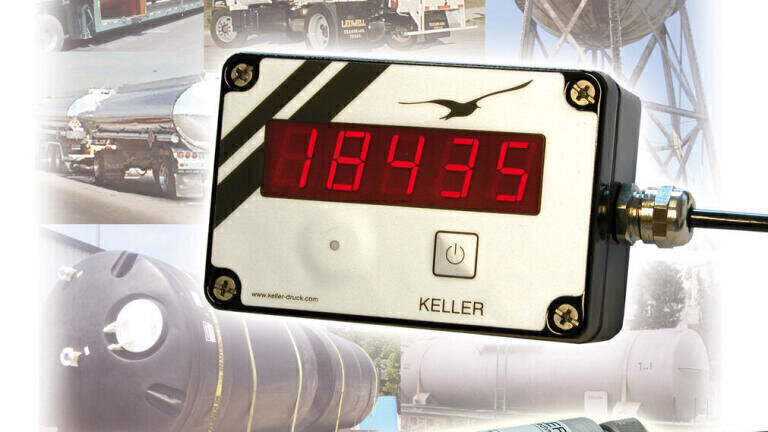

Under the name of Castello, Keller AG has introduced a flexible, modular system for the accurate indication of the content of a liquid in a tank.
Castello offers a user-friendly way to represent the pressure measurement at the bottom of a tank as the quantity of remaining liquid. At the push of a button, the microprocessor performs the calculations using the information of the tank shape and dimensions and displays the remaining tank content quantity on the clearly legible 5-digit LED display in the desired unit (litres, gallons etc.). The easy to use software to configure Castello is free of charge. It contains the most current tank shapes. Other tank shapes can be easily integrated at the factory.
The exclusive use of absolute pressure sensors in the Castello system eliminates the use of capillary vented cables with all the problems associated with a gauge pressure measurement.
The Castello enclosure integrates an air pressure sensor, ranged between 0,8 bar and 1,3 bar absolute. The sensors to measure the hydrostatic pressure at the bottom of the tank are calibrated from 0,8 to 1,8 bar abs for tanks up to 5 m in height, and 0,8 to 2,3 bar abs for tanks up to 10 m in height. The pressure difference, calculated by the μP, is the relative hydrostatic pressure. Castello is also IP65 waterproof.
The overall accuracy of the system of 2 mbar is achieved using a computerised calibration and compensation procedure for the pressure sensors. The coefficients for this calculation are stored in EEPROMs in the sensors. These are retrieved by the microprocessor at each measurement and employed within the equations to calculate the pressure values. The Castello enclosure and hydrostatic sensor can be interchanged at will.
The power supply to the system is provided by a 9 V compound battery and is sufficient for at least 6000 measurements with a 5 second display duration.
