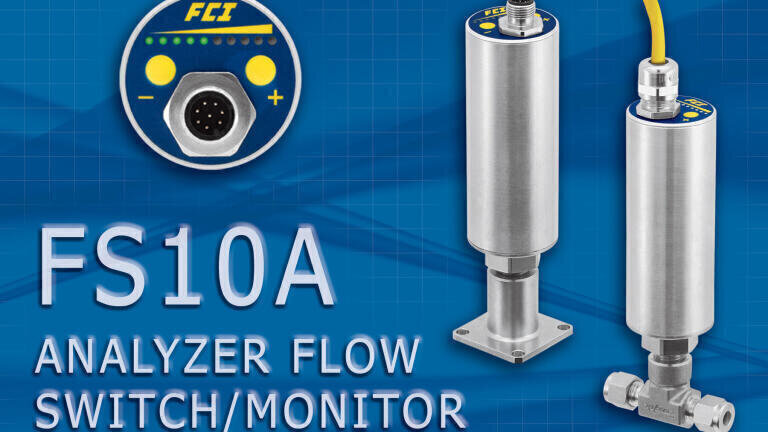

FS10A Flow Switch/Monitor For Analysers and Sampling Systems

Water and wastewater operations and plant engineers in search of a flow switch/monitor to ensure flow to their water or gas sampling systems or analysers will find their solution in the Model FS10A Analyser Flow Switch/Monitor from Fluid Components International (USA). No matter how sophisticated a fluid analyser system may be, it will be ineffective if a sample flow fails to reach the analyser sensor. The most advanced systems in the world cannot provide accurate results without a valid fluid sample. That’s why Fluid Components International (FCI) developed the advanced FS10 Analyser Flow/Switch Monitor.

The FS10A Flow Switch/Monitor is designed for use with tubing from 1/8 inch to 1Ž2 inch and the electronics may be either integrally mounted or remote mounted from the sensor element. It is extremely sensitive to low flow rate detection, there are no moving parts to foul or clog, and there are no cavities, orifices or dead-legs to trap or contaminate samples.

FS10A is suitable for applications in liquid or gas analyser sampling systems. It is small, lightweight and features a choice of electronic outputs including open collector, relay and 4-20mA outputs. Limit alarms are also user programmable for time delay and/or hysteresis. An on-board 10-LED array provides at-a-glance visual indication to the user of flow rate and whether the alarm limit has been tripped. All FS10A set-up parameters can be performed via its two front panel push buttons or via a PC over its RS232C I/O. Its exclusive “learn” mode facilitates easy user set-up of flow range zero and span settings.

Water and wastewater end-users and system integrators will find FCI’s FS10A provides a superior overall solution for sampling system and analyser flow assurance. With its advanced electronics and ultra-reliable thermal dispersion flow sensing technology it will ensure the highest integrity process analysis without interruption.
