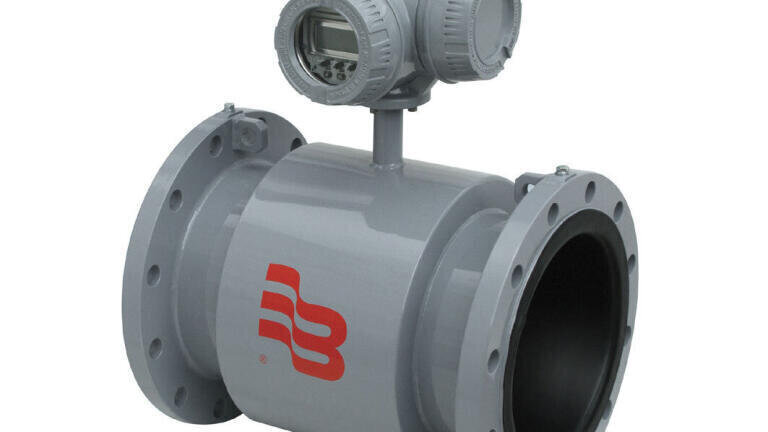

ModMAG M3000/M4000 Amplifier for Flow Measurements

The M3000/M4000 amplifier from Badger Meter Europa (Germany) with modular design allows flow measurements in ex-zones 1 and 2, in either the mounted or remote version.

The amplifier housing, made of powder-coated aluminium, is available in protection class IP 67 and with a separate connection space. Programming can be done either with closed housing thanks to a magnetic pen or with open housing via three buttons. The four-line display shows all necessary data like actual flow, totalizer and status messages.

The programmable excitation frequency even enables the amplifier to be adjusted for difficult metering applications. The new developed process for amplifier compensation enables a high accuracy, especially in the lower flow range.

The ModMAG is especially suited for flow measurements in the chemical and pharmaceutical industry, as well as water and waste water plants with explosionproof zones.
