Water/Wastewater

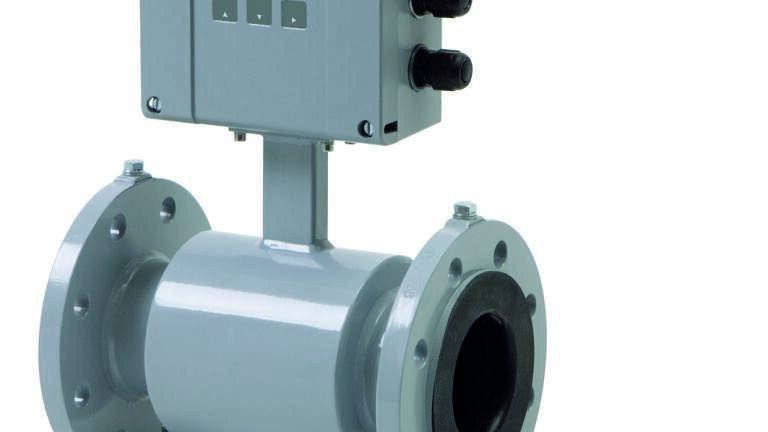

Battery-Operated Water Meter with OIML Approval
Aug 28 2016
Ideally suited for leak detection in water networks, water consumption measurements and irrigation plants, the meter has been designed for applications without a power supply where exact consumption or flow rates are required. Of course, the B-MAG I M5000, from Badger (Germany), can also be used with an available power supply. The meter can be powered with main voltage and in case of a main failure, it is powered by an internal battery. Important data are consequently saved.
The B-MAG I M5000 is a battery-powered electromagnetic flow meter with a very high accuracy even at very low flows. The excellent repeatability as well as the above-average battery life makes this innovative water meter indispensable for the water market, even at the most remote measuring sites. The standard meter is equipped with an internal datalogger which can read-out via an IrDA, RS232 interface with ModBus RTU protocol or M-Bus. The collected data can also be retrieved via radio frequency or GSM. The data can thus be centrally compiled and evaluated.
The B-MAG I M5000 is approved according to OIML-R49-1 and MID M-001.
