Fuji Biogas Measurement Solutions - Perfect for your application

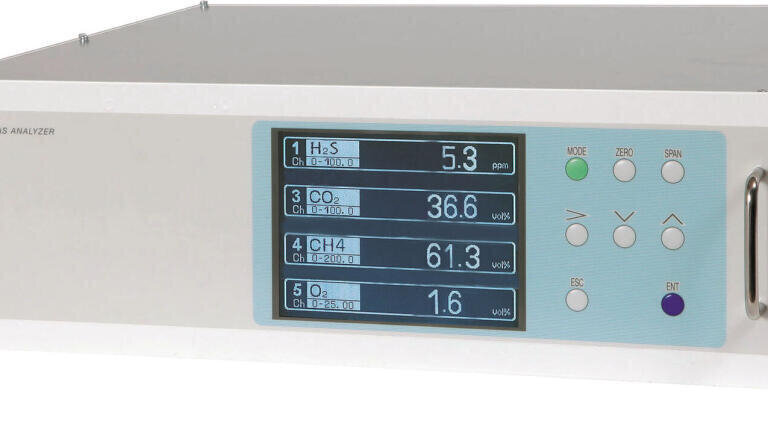

ZPAF Biogas Analyser: high-stability and ease-of-maintenance incorporated into a space-saving design

ZPAF biogas analyser can simultaneously and continuously measure the concentration of CH4, CO2, H2S and O2 components in the biogas. CH4 and CO2 are measured by non-dispersive infrared method (NDIR), O2 by fuel cell method and H2S continuously measured by constant-potential electrolytic method with auto regeneration cell. H2S measurement range is up to 5000 ppm.

Features

• Very high sensitivity:
  • With the brand new mass flow sensor
  • Easy maintenance, easy measurement method using an adapted single beam.
• Compact and lightweight:
  • 133 x 483 x 382mm (HxWxD); rack mounted 19”
  • Weight 11kg.
• Embedded functions:
  • Automatic calibration
  • Atmospheric pressure correction
  • Alarm for upper and lower limit concentration
  • Remote input for switching range.
• User-friendly:
  • Large LCD, display of instantaneous value of each component
  • Clear and easy-to-read display facilitates operation.

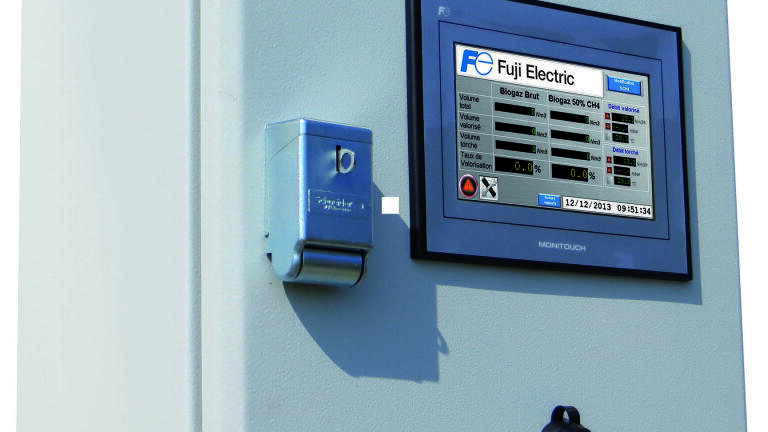

ZPSB Biogas Analysis system: designed for each application according to environmental and process conditions.

ZPAF biogas analyser can be integrated to the ZPSB Biogas Analysis System. This full cabinet allows reliable, robust and efficient biogas and H2S measurement up to really high content.

This cabinet can be wall-mounted or standalone and offers an easy and fast installation and commissioning. It uses Fuji Electric NDIR latest technology and minimised cross-interferences.

The ZPSB Biogas Analysis System is flexible and adaptable to your site conditions: Polyester standard cabinet for outdoor installation, measurement ranges freely configurable by the operator, multipoint sampling system with Fuji Electric touchscreen POD interface (option).

Measurement gas components and measurement ranges:

• CH4 0-20% vol. to 0-100% vol. NDIR
• CO2 0-20% vol. to 0-100% vol. NDIR
• O2 0-10% vol. to 0-25% vol. Electrochemical fuel cell
• H2S 0-500 ppm to 0-5000 ppm Constant potential electrolytic sensor.

Applications examples:

• Landfill site, Ultimate waste storage site
• Upstream & downstream gas treatment biogas
• Digesters and fermenters
• Sewage treatment plants and laboratories.

Services

The Fuji Electric Global Biogas Solution includes installation, commissioning, maintenance contracts and training on our biogas analyser.

To learn more about our solutions come and visit us during Pollutec exhibition at our booth #156, Hall 5, Aisle C.

Contact us or visit the website for more information.
