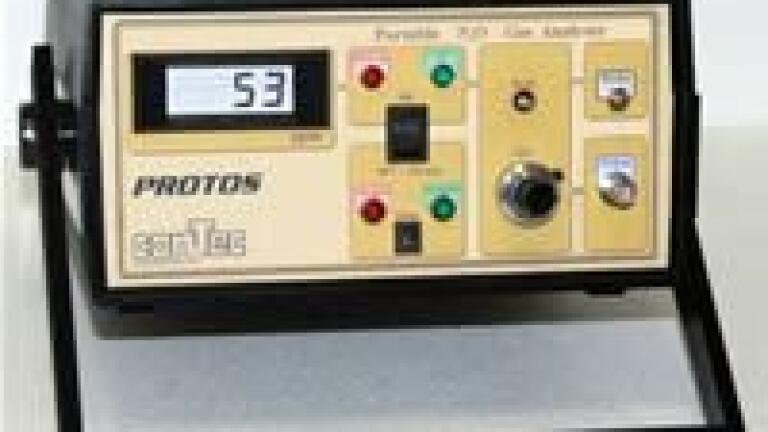

Portable Nitrous Oxide Monitor (N2O) in Operating Rooms

The nitrous oxide monitor PROTOS from Con.Tec Engineering, is an instrument able to measure in a vary sample way the concentration of N₂O present in operating rooms.
The monitor PROTOX is a compact instrument which can easily be set in the most suitable place.

It is powered by an internal rechargeable battery with 8 hours autonomy.
The instrument is equipped with an analog output which can be sent to a recorder or a PC which, with suitable software and hardware, will display the measured concentrations both in graphic form and in table form with a contemporaneous storage of measured values for eventual subsequent data processing.

This instrument can be used also as N₂O leak detector for discovering the eventual leaks of this gas from gas distribution circuits and from anaesthesia equipment.

Technical features Measuring principle: infrared Measuring range: 0 - 1000 ppm Power supply: internal rechargeable battery (8 hours autonomy)
Reading: digital in ppm Output: analog 0 – 1 V DC Response time: 3 seconds Precision: 5%, Calibration stability: 5% in 12 months
Dimensions: 216x268x115 cm Weight: 3,2 Kg
The instrument is supplied complete with the following accessories

• Internal rechargeable battery
• Battery charger
• Probe
• English instruction manual
