Hybrid Sensor Technology Slurry Analyzer

Rhosonics Analytical is proud to present the World’s first non-intrusive inline density meter which eliminates virtually all known disadvantages of existing systems on the market.

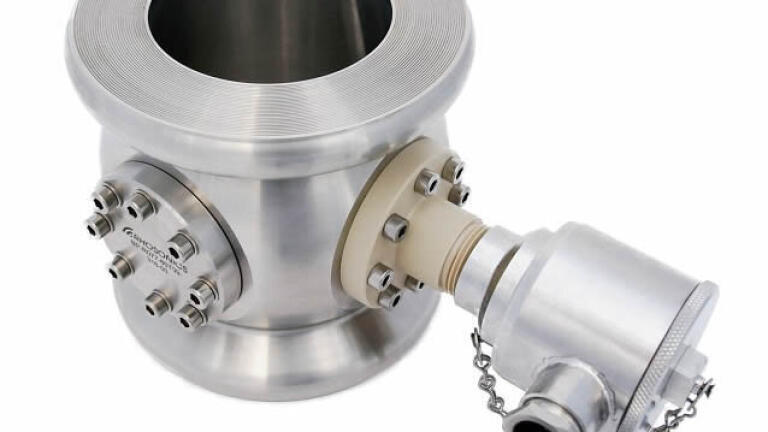

The Rhosonics sensor of the Model 9690 Ultrasonic Density Analyzer employs only one, simple to install, flush mounted sensor, which can be installed in a tank or in an existing pipeline, or supplied with our UFTC

Full Bore Flow-Through cells.

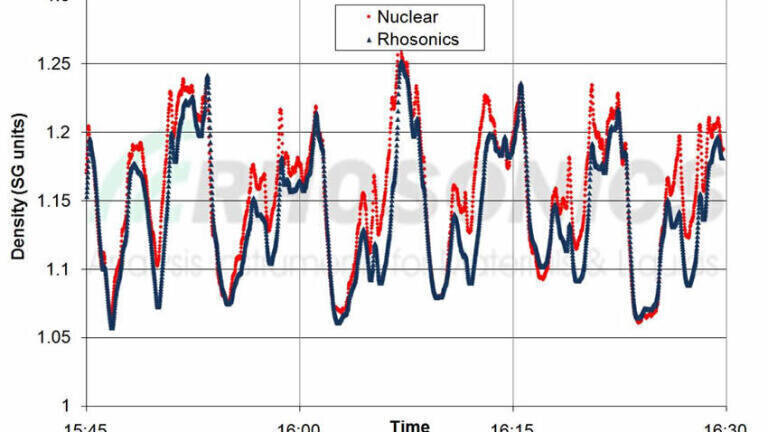

At last a new and extremely reliable technology is available for the heavy industry to measure slurry and suspension density, inline, and with a minimum of installation and maintenance effort. This means that inline slurry monitoring is now feasible, without drawbacks of other inline density measurement methods, like nuclear and microwave systems.

The abrasive and corrosion resistant sensor material, which can either be PFA, PVDF, PEEK or PE, well protects the internal elements, which take care of transmitting and receiving of a broad spectrum of ultrasonic sound waves. Through the interaction of the sound between the contact surface and the fluid to be measured, the Model 9690 derives a complete image of the slurry density, without the need for the sound to pass through the fluid. From the

imaged spectra, the system derives the density of your water based slurry, regardless of composition, particle size and other properties of the particles.

The extremely powerful and revolutionary technology to measure density allows inline fluid density measurement virtually without any restriction. Field tests and experiments with a large variety of different compositions prove the 9690 analyzer its virtually unlimited use for any industry: Limestone, Gypsum, Silicon carbide, Zirconium Carbonate, Sand, Cement, Ground Ore, Cutting, Polishing Slurry, Drilling Mud.

Model 9690 measures the density of the slurry. When liquor density is desired or in case you wish to measure the suspended solids (TSS) or the liquor density (TDS) or both independently, then Rhosonics Model 9670 with Full Bore Flow Through sensors is the instrument of your choice. Please advice the selection table on our website for the various models.
