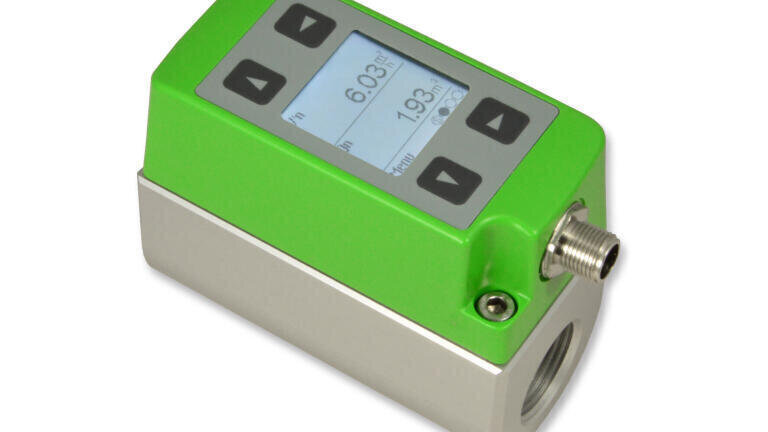

Modular In-Line Flow Meter for Compressed Air and Gases

The compact EE741 in-line flow meter from E+E Elektronik (Switzerland) measures accurately the consumption of compressed air and technical gases. Thanks to the modular design, one and the same transmitter can be used for three different pipe diameters (DN15, DN20, DN25). To do so, the transmitter is simply combined with the appropriate gauge mounting block. The thermal hot-film anemometer measurement principle stands for best long-term stability and short response time.

Easy installation and low maintenance make the EE741 ideal for cost-effective consumption measurement of compressed air and technical gases such as nitrogen, oxygen, helium, CO2 or argon. The flow meter can accurately monitor standard volume flow, mass flow, standard flow, temperature as well as the consumption of air or gas.

In combination with the corresponding gauge mounting block the transmitter can be employed for pipe diameters DN15, DN20 or DN25. The gauge mounting block is permanently mounted at an appropriate location of the pipeline. The transmitter, with its robust stainless steel sensing head can be installed and removed without disassembling the pipework and with only a short interruption of the air or gas flow. The gauge mounting block features a sealing plug for operation without transmitter. This construction facilitates the periodical calibration of the transmitter and its temporary use at several measuring points.

The EE741 employs the well proven E+E thin-film sensor, which operates on the thermal anemometer principle and stands out by excellent long-term stability and short response time. The thin-film sensor is highly insensitive to contamination and the operation principle eliminates the need for additional pressure or temperature compensation. The multi-point factory adjustment at 7 bar (102 psi), which is the common pressure of the compressed air supply, leads to best accuracy even in the lower measuring range. By this, EE741 can be optimally employed for leak detection.

The instantaneous measured values or the total consumption can be displayed on the optional state-of-the-art display. For optimum readability independent from the transmitter location, the display can be rotated in 90° increments. All the settings for commissioning can be performed with the push buttons and the display. The EE741 versions without display can be configured via USB interface with the free EE-PCS product configuration software.

One particularly useful feature of the EE741 is the integrated consumption meter which enables cost-effective consumption monitoring without an additional datalogger.

The EE741 flow meter can be easily integrated in any measurement and monitoring chain. It features a scalable analogue output (4-20 mA / 0-20 mA), two switch outputs and a pulse output. A Modbus RTU or M-Bus (Meter-Bus) interface makes the device future-proof and ready for Industry 4.0.
