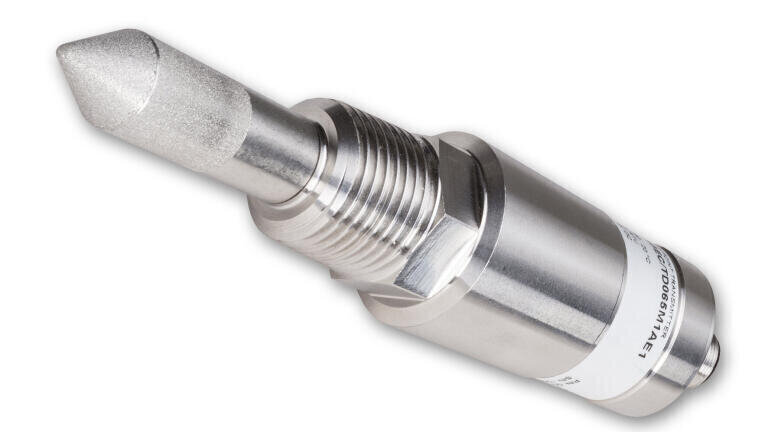

Compact Dewpoint Transmitter for OEM Applications

The compact EE355 dewpoint transmitter measures dewpoint temperature with ±2°C? accuracy across the entire working range. The unit offers an optimal price-performance ratio for OEM applications in compressed air systems, plastic dryers and other industrial drying processes.

With the new EE355, E+E Elektronik (Austria) expanded its range of dewpoint products with a transmitter for the range -60…+60°C Td at an operating pressure up to 20 bar. Same as other E+E dewpoint transmitters, the EE355 features a special auto-calibration procedure which leads to ±2°C Td accuracy, and employs E+E polymer humidity sensors, which are condensation resistant and highly long-term stable.

The measured values for dewpoint, frost point or ppm volume concentration are available on the analogue 4…20mA and on the digital Modbus RTU outputs. Integration into the measurement task is simplified considerably by the compact design and the robust stainless steel enclosure.

With the free configuration software and the optional Modbus to USB converter the user can scale the analogue output, set up the Modbus communication and adjust the transmitter.

E+E Elektronik manufactures various models of dewpoint measuring instruments, from compact OEM transmitters to high-end devices for demanding process control, and covers with these a wide range of applications.
