Control All of Your Processes with ControlMaster Range

Building on the successful Commander family, the ControlMaster range from ABB (UK) now offers an even wider range of control and indicator functions in just four easy to specify versions.

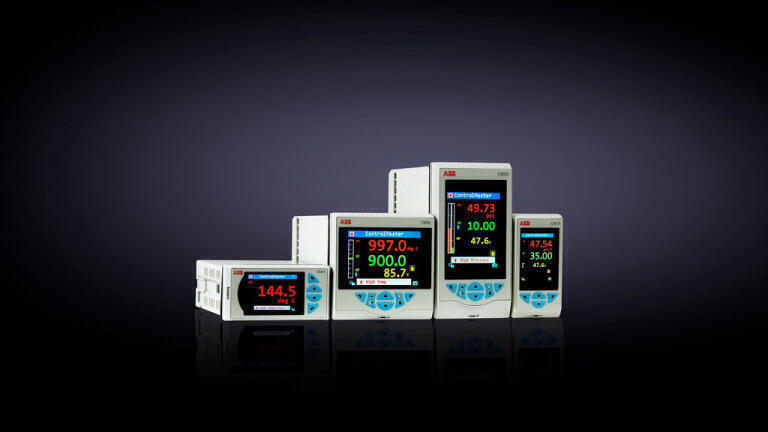

A key feature of the CM15 indicator and the CM10, CM30 and CM50 controllers is their full colour TFT display, providing operators with a clear and comprehensive display of process status and key information. Adjustment of the display via the customisation feature enables the operator to tailor their view to their requirements, while a chart display provides short term trending information.

The use of a TFT display also makes the ControlMaster range extremely easy to configure. Configuration menus are displayed in clear text, with no complex codes or abbreviations found on controllers with lesser displays. Further time savings during configuration are made possible by the use of built-in application templates, enabling operators to simply select the template best matched to their requirements, with the ControlMaster automatically configuring its I/O, display and control strategy to suit. Configuration can also be performed via DTM-based PC configuration software. Configuration files can be transferred to the ControlMaster via its front-mounted infrared port or stored locally on a PC.

The ControlMaster range offers a choice of communications options – Ethernet, Modbus, and Profibus. Ethernet communications provide the ability for users to be automatically notified of critical process events via email or remotely monitor the controller and process via the ControlMaster’s integrated webserver by simply using a standard web browser. For integration with larger control systems, the Modbus (RTU and TCP) and Profibus options enable access to real time data on process values and device status.

Other new features include additional control options alongside the standard cascade, ratio and feed-forward control functions to help bring even the trickiest processes under control. Predictive control algorithms including dead time compensation, makes the ControlMaster ideal for applications with long dead-times such as pH dosing applications. Added control efficiency is enabled by the inclusion of adaptive control, which allows the ControlMaster to automatically adjust its control response to suit variations in process response. In addition, dual loop control makes it possible to use one ControlMaster to control two processes.
