Versatile Open Path FTIR Gas Analyser

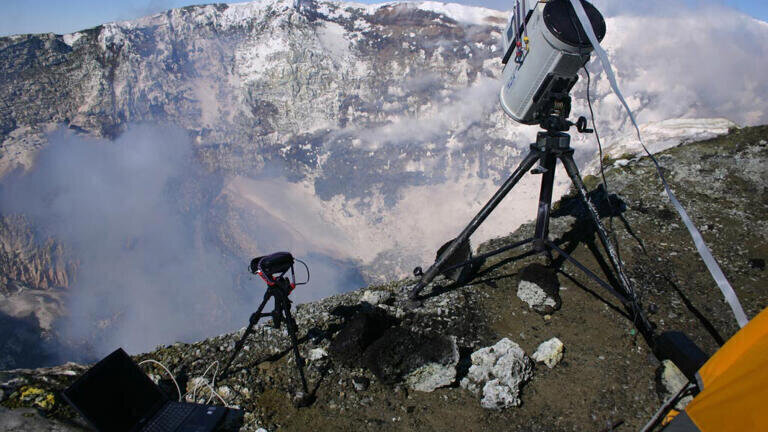

MIDAC (USA) provides a versatile open path FTIR gas analysis system for a variety of applications. The AM Air Monitoring System can detect, identify and measure a wide range of compounds simultaneously, within seconds of startup. Analysis is onsite through a continuous sampling path of up to 1000 meters.

Whether the application is battlefield chemical warfare agent analysis, civilian hazardous event response, industrial stack and/or fenceline monitoring and analysis or environmental research, the MIDAC AM System can provide continuous, unattended, near real-time detection at ppb to % levels for hundreds of chemicals.

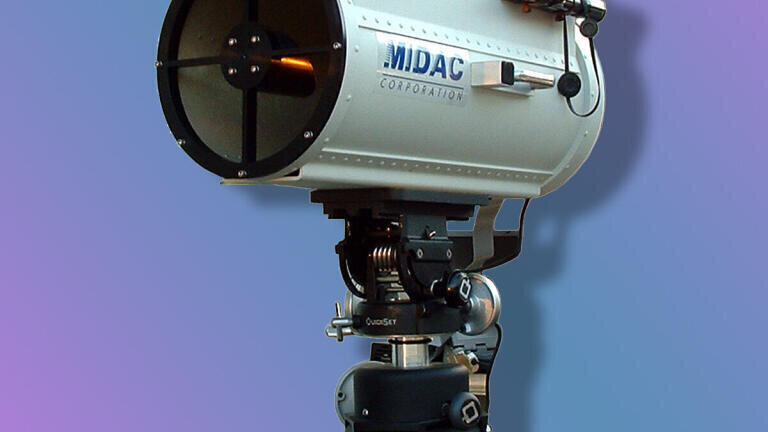

Each system includes a rugged, sealed 0.5cm-1 resolution interferometer equipped with a choice of beamsplitters and detectors. The analyzer is coupled to a control PC via standard ribbon cable or long range fiber optic link. For extended sample paths, the FTIR can be mounted to a rugged, 10” Newtonian telescope with tripod. A high energy infrared source module on the opposite end of the sample path completes the system.
