Continuous and Simultaneous Combustion Gas Analyser
Feb 14 2013

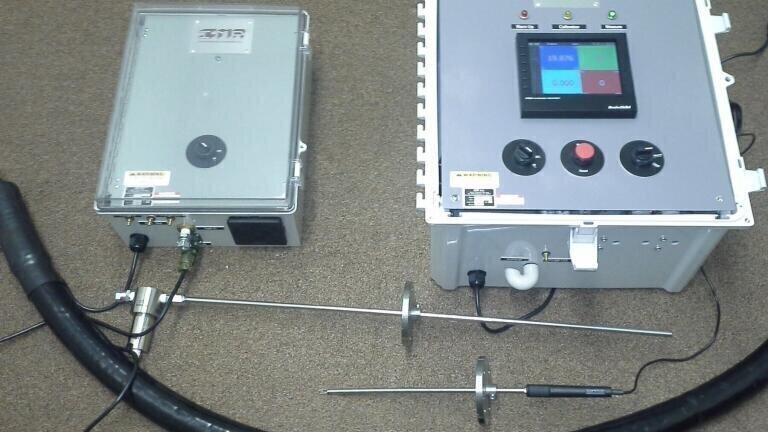

IMR 5000, from IMR Environmental Equipment (USA), is a state of the art flue gas monitoring system. It is a standalone and automatic system. The enclosure meets IP65 / NEMA 4x requirements.
The modular approach allows the instrument to measure 1 to 12 different (customer selectable) gases simultaneously and continuously. (i.e. O2-CO-CO2-NO-NO2-SO2-H2S-CH4-HC-NH3-N2O-CHL-CL2-O3-Temp.)
Each IMR 5000 is custom built according to customer specifications, including gases, gas ranges, enclosure and output.
The IMR 5000 supports 0-10, 0-20mA, 4-20mA, 0-10V, RS-232 , RS-485, RS-422 Ethernet, USB and digital output.
The IMR 5000 is capable of calculating Lambda, QA (loses), ETA/Efficiency, NOx, NO2, CO2. In addition, the IMR 5000 includes a 1GB flash card used to store instrument configuration and measurements.
The IMR 400 gas conditioning unit dries and conditions the combustion gas which then will be analysed by individual sensors. This unique design prevents artificially low readings of NOx, SOx and many other combustible gases.
The SDU5000 processes the information and clearly displays the readings on the front case of the IMR 5000 on a 5.7" colour monitor. This monitor can also output the data in a variety of formats. IMR also offers the Observer II software, real time data transfer application that transfers the information to a connected PC. The user can then interpret the data with hourly, daily, weekly and monthly graphs as well as reports. The Observer II software also offers the capability of monitoring and accessing unit data information remotely through Ethernet.
IMR are currently looking to expand their worldwide distributor network.
