A New FID System for VOC Analysis

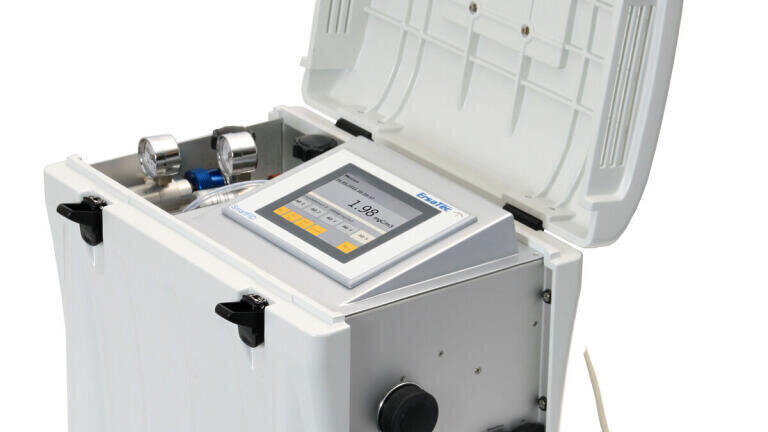

The SmartFID, from ErsaTec GmbH (Germany) is a portable heated flame ionisation detector (FID) for measuring total carbon in VOCs e.g. MAC, process monitoring, emission detection etc. SmartFID combines proven technology with new features such as automated ignition, automated calibration, integrated data logger with export function in different formats on USB and remote operation via Ethernet.

Automatic range switchover ensures that the measurements are always carried out in the correct range. The instrument is equipped with a 7” QVGA colour TFT touch screen allowing for user-friendly operation including a help-system. By using the free configurable feature calibration ratio, SmartFID analyses the output of measured value in mg C, mg compound, ppm or % LEL. The necessary air-conditioning is achieved by an integrated catalyser and all relevant interfaces and filters are easy accessible. During operation the device performs auto diagnosis and displays maintenance requirements. Additionally, the operator may use the tendency visualisation to watch the development of the measured value or to look for peaks in the elapsed time period.

In addition to the mobile version SmartFID is also available as a stationary 19” / 4 RU unit.
