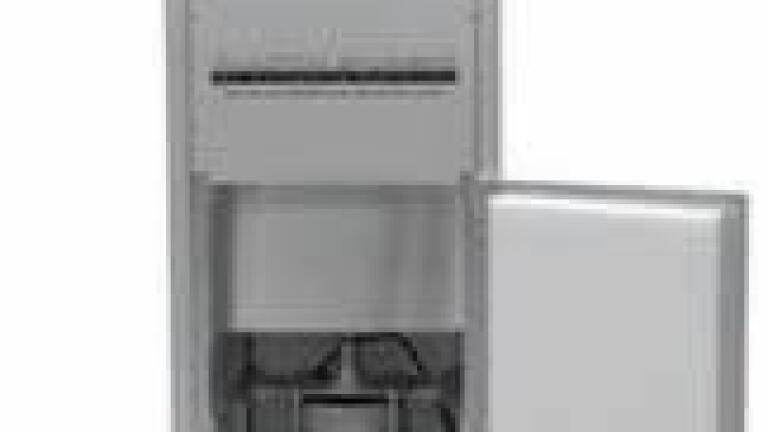

New High Volume Sampler for PM10

The new high volume Air Flow PM10-HVS sampler line equipment from Analitica Strumenti (Italy) perfectly complies with UNI-EN 12341 norm requirements for the respective sampling of PM-10 particles. It is equipped with an electronic flow control with a Venturi tube system in compliant with ISO 5167 requirements for gauging by means of differential pressure devices and for the detection of pressure itself on 4 points per sector, offering the user maximised accuracy for reliable results.

The new PM 10 dust particle impactor splitting was constructed in full compliance with characteristics published in reference methods. When used with the aid of simple adapter kits, they can be replaced between one sampler and another for simple, versatile use. All sampling phase settings are electronically programmed. Samplings can be set by time, volume, cyclical sampling, from quadrant sector sampling. All detected data is memorised and transferred to a PC or to an optional local printer, with the possibility of remote GSM/GPRS control (optional). Thanks to new type 5 boards, it is possible to visualise all reported data at set values, sampling levels exceeding flow control chart patterns to ensure proper sampling development. CEM Stand 20.
