New automatic water sampler

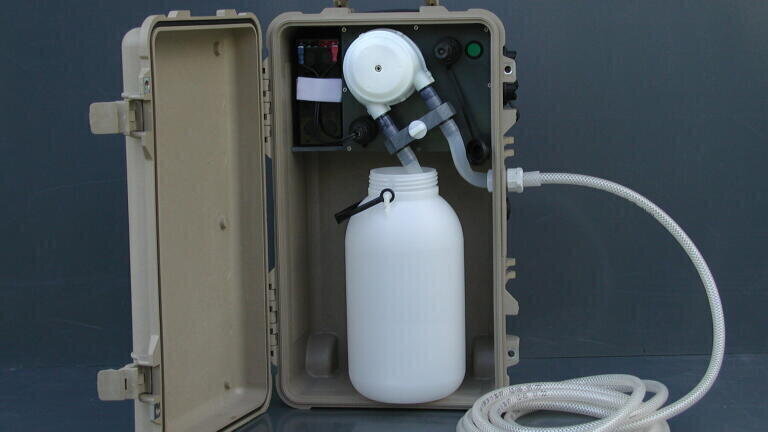

SIMPLY-SAMPler from QH SERVIS (Czech Republic) is a simple but versatile automatic water sampler.

The sampling program is stored in the configuration connector memory, which you connect to the unit to start the selected sampling program. Immediately after you attach the configuration connector, press the button to calibrate the required sample volume. While the program runs, use the same button to take an extra sample (manual sample). The sampler status is indicated by the button illumination through bicolor LED on the configuration connector. The used sampler operation system does not require display or keypad, ensuring easy operation.

To operate the sampler, you may use several configuration connectors programmed for individual sampling modes, or you may use the configuration connector programming set including PC software, where you may adjust individual cycle periods as required.

Sampling is provided by a peristaltic pump. Before and after each sampling, the pump is reversed to blow the hose clean. You may also wash the hose with the current sample for several times before sampling – the liquid is sucked up to the pump and released back.

Samples are taken to a suitable shared container.
   You may operate the sampler with the configuration connector in modes that depend on time or on phenomena, when a signal from a device that monitors the analyzed phenomenon (no-voltage contact) starts and stops sampling. For sampling where a single sample volume depends on the immediate flow, the unit must be connected to the analog signal from the flow-meter. By connecting the sampler with the flow-meter sending impulses once the required volume of water has flowed through, the sample takes one sample once it receives the impulse.

* economy – with the pump outside the box, a holder and a shoulder strap

* boxed – the sampling system is hidden in a box, with a holder and a shoulder strap

* mobile – the system, including the sampling container, is placed inside a transport cabinet with wheels

* cooled – the sampler includes a mobile cooling box powered by batteries or from mains

* stationary – in a stainless steel two-part cabinet with thermostatic control

A wide range of accessories for installation and sample storing is available.
