Great Potential Inside Small Dimensions

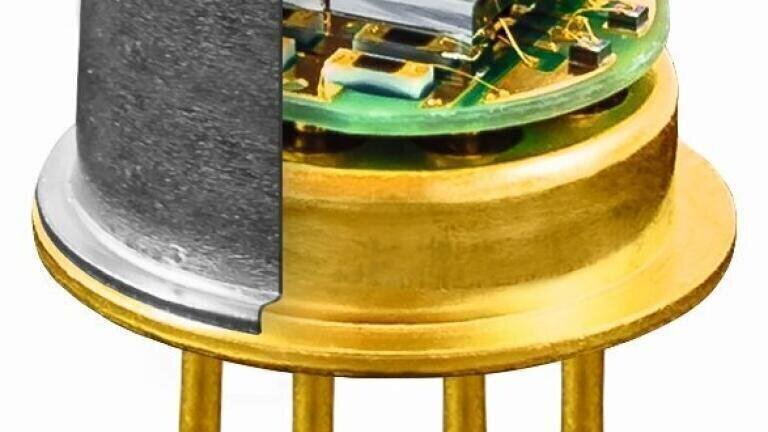

Even smaller, even stronger – this is how we might describe the new LRM-254 detector by InfraTec (Germany) in just a few words. This miniaturised four-channel detector in TO39 housing, with an aperture of only five millimeters, has just expanded the product range of the Dresden manufacturer, InfraTec.

A mere glance at its appearance gives clues about this sensor's first unique feature. In the cap where

conventional multi channel detectors have sensitive narrow bandpass channel filters with special adhesive

mounted, a central window has been added in the detector cap instead. This significantly more robust

broadband filter, e.g. made of sapphire, offers substantially better protection against penetrating moisture. It

can also be soldered to the housing to create a complete hermetic seal.

The channel filters are now placed inside the detector instead. There, they are shielded from mechanical and

physical stress, as well as from other strains from harsh environments – and they are also located even

closer to the pyroelectric elements. The reduction of this distance and the central window integrated into the

detector cap are two of the factors that ensure that the field of view (FOV) is now significantly wider. At the

same time, all elements are placed closer together inside the detector. This allows more radiation to reach

the pyroelectric element and therefore a higher signal. In addition, since the optical correspondence of the

individual channels remains consistently low, the LRM-254 proves to be extremely powerful.

The new detector is an example of an innovative product line, and one that provides users with additional

possibilities for the use of sensors. The compact, miniaturised construction allows for more analysis channels with unchanged detector size. Or, the same number of channels can be integrated into significantly smaller packages.

This space saving and robust design will especially appeal to users who want to integrate sensors in mobile

devices. In the fields of gas and flame sensor technology, this increasingly compact periphery plays a crucial role. With the LRM-254, which even can be thermally compensated due to its minimised stack design, you now have important new flexibility thanks to the latest developments by InfraTec.
