Highly Sensitive Dual Channel Gas Detector

InfraTec GmbH (Germany) has more than 20 years of experience in the design and manufacture of pyroelectric infrared detectors. In 2002, Infratec augmented their detector line with integrated CMOS preamplifiers which were successfully established on the marketplace. In contrast to conventionally equipped detectors with JFET source-follower, these detectors provide higher signal gain and faster time response. Due to very high signal voltages of up to a few 100 mV, they can be easily signal conditioned and coupled to an A/D converter or microcontroller.

For the past several years, the integrated CMOS OpAmp preamplifier family also included detectors with one

channel for single-supply operation. These detectors were developed for use in gas analysers or for flame

detection at large distances. The extremely low power consumption of 40 μW at 2.7 V is especially ideal for

battery powered portable analysers. The power consumption in single supply operation is only 40 μW,

compared to 800 μW in split supply. The built-in thermal compensation circuitry of these detectors ensures a

stable operating point under extreme temperature ramp conditions.

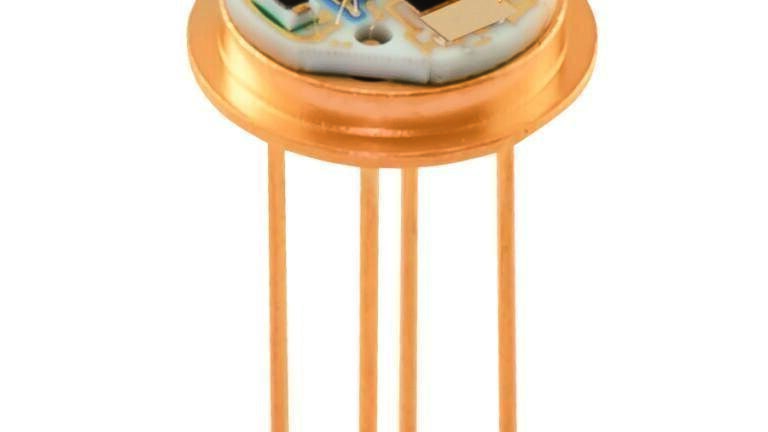

The new LIM-272 low-power detector with two channels is the newest introduction by InfraTec. In addition to

the measurement channel, a reference channel is also available. Due to the high sensitivity of > 90k V/W,

the LIM-272 is also very suitable for gas analysers with a wavelength range of (8-12) μm and can be used

to identify alcohol or chlorinated hydrocarbons, for example.
