CO2 Sensor Module Designed for OEM Applications

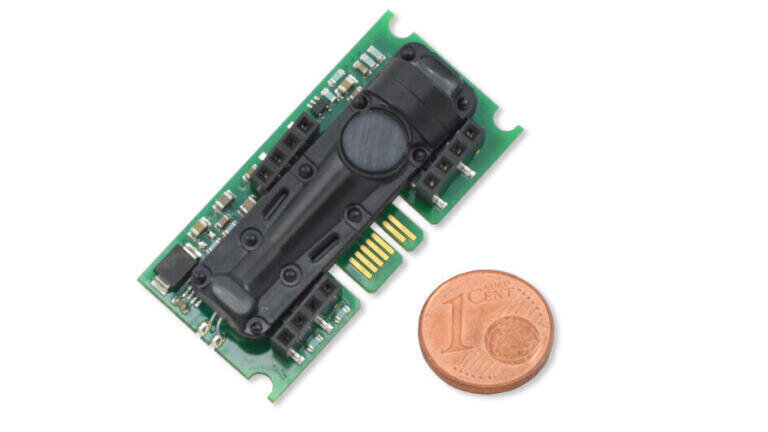

The sensor module EE893 from E+E Elektronik (Austria) allows highly accurate and long-term stable CO2 measurements in demanding OEM applications. Thanks to its very small size and low power consumption, EE893 can be used in both hard wired sensors and battery operated devices such as wireless transmitters, hand-helds and data loggers.

The dual wavelength NDIR measuring principle is maintenance free and highly insensitive to environmental influences. Aging effects are automatically compensated.

The multiple point CO2 and temperature adjustment ensures excellent accuracy over the entire temperature working range. The CO2 measurements with a measuring range up to 10,000 ppm are available on the digital E2 interface. The measurement interval can be set individually according to the requirements of the application.
