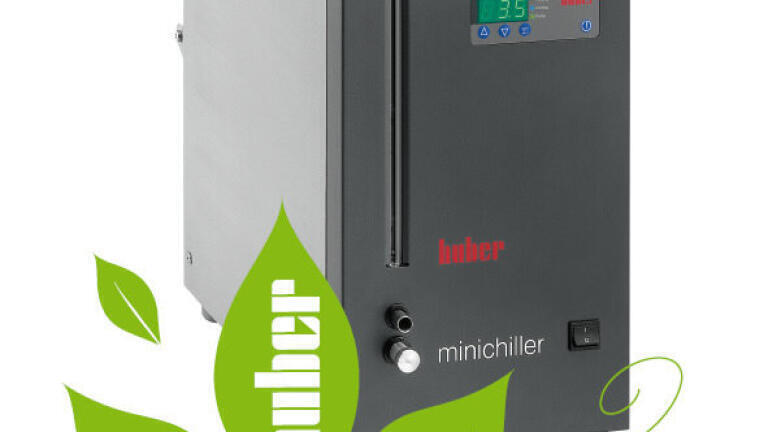

HUBER Minichillers – natural refrigerants with reduced water consumption

The compact Minichiller reduces water consumption to zero, offering a low cost, chilled water supply with environmentally friendly refrigeration for a variety of laboratory applications.

With the ever rising cost and environmental impact of waste water, Scientists and Facility Managers are increasingly looking for alternative ways of cooling applications in the laboratory. A calculation, based on water consumption, shows that in a working week (8-hours a day, 5 days a week), the Minichiller could save approximately 48,000 litres of water, and as the Minichiller is low in cost, it offers a fast return on investment which can be measured in months.

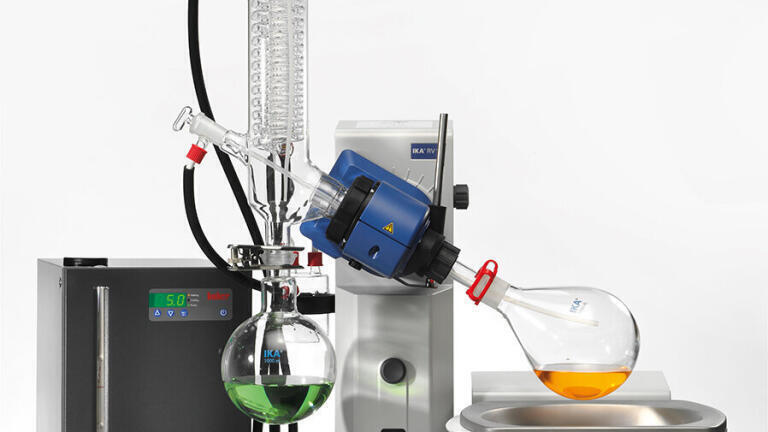

The compact Minichiller is designed as a space saving tower and with a footprint of just 225 x 360mm and takes up less bench space than many laptops. With a temperature range of -20 to +40°C and cooling capacity of 300 watts at 15°C, Minichillers are ideal for cooling reaction blocks, vapour traps, vacuum pump condensers, rotary evaporators or heat exchangers, supplying predictable and correct pressure, flow and temperature to applications resulting in tangible process efficiencies. The Minichiller’s internal volume is only 2 litres therefore eliminates the risk of flooding in the laboratory and allows the process to be run unattended further increasing efficiency.

The Minichiller features an easy to use Microprocessor control with a large temperature display. Alternatively for applications requiring more functionality the controller can be supplied as an "Advanced" version which includes an RS232 interface and an external Pt100 sensor connection. The Minichiller is also available with 1kW heating power, extending the upper temperature range to 100°C.

Minichillers are available as both water and air cooled units and with standard or advanced functionality. All units use natural refrigerants and are CFC and H-CFC free.

To find out more about the Minichiller or download the catalogue visit www.huber-online.com
