Affordable & Flexible Solution for Real-Time Thermal Analysis

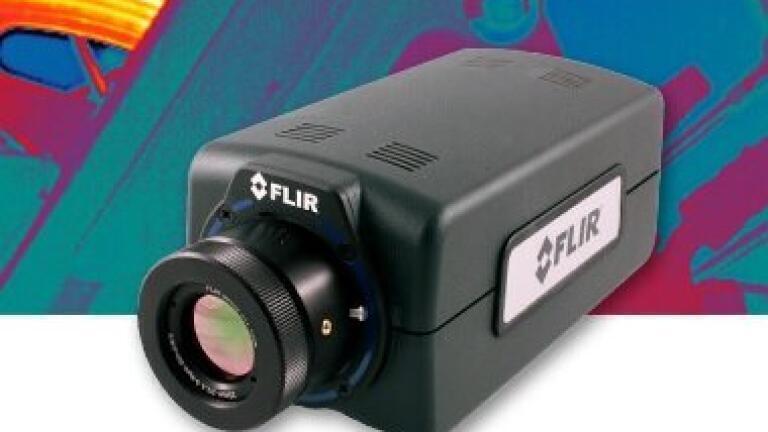

The FLIR Systems A6700sc redefines affordable high performance in science-grade thermal imaging. Featuring a highly sensitive 640x512 pixel resolution Indium Antimonide (InSb) detector, the A6700sc produces beautiful temperature-calibrated IR imagery that are perfect for demanding research and science applications.

Designed for electronics inspections, medical thermography, manufacturing monitoring, and non-destructive testing, the camera is ideal for high-speed thermal events and fast-moving targets. Short exposure times allow users to freeze motion and achieve accurate temperature measurements. In fact, the camera’s image output can be windowed to increase frame rates to 480 frames per second to accurately characterise even higher speed thermal events, helping ensure critical data doesn’t get missed during testing.

A6700sc cameras have been designed to stream temperature-calibrated data over Gigabit Ethernet to a PC for live image viewing and recording. Using FLIR’s ResearchIR software, researchers and scientists can easily monitor, acquire, analyse, and share data. In addition, extender rings for zoomed-in fields of view make the camera perfect for imaging small thermal targets, and close-up lenses can detect spot sizes down to 15um per pixel – well beyond the capabilities that lower performance IR cameras are able to achieve.
