Two Flow Totalisers in One

Aalborg's NEW TIO Totaliser converts analog Mass Flow Meters and Controllers into precision digital units via RS 232 or RS 485 interfaces (multi-drop capacity up to 64 devices).

This new product can be used as a monitor for Aalborg's GFM and AFM Flow Meters or as a controller with GFCs and AFCs. It can also be used with any third party devices with 0‑5VDC/4‑20mA inputs and outputs. No host PC presence is required for local or programmable Set-point control.

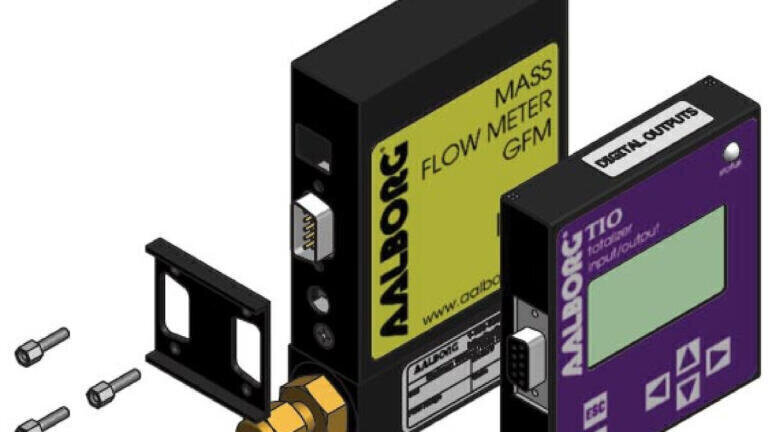

The TIO's compact size is designed for wall, panel, field, or unit mount applications. It is easily mounted to a GFM or GFC by simply unscrewing the unit’s D-connector and attaching the TIO. A bracket and screws are provided in the Mounting Kit.

Aalborg configures the TIO input and output signals to your specific application. Changes can be easily made via a user-friendly menu. All process configuration parameters’ settings are password protected to prevent accidental or unauthorized changes.

This model is equipped with two programmable optically-isolated digital outputs and a user-programmable optically-isolated pulse output with preset active low time interval.
