New Continuous Emission Monitoring System

IMR Environmental Equipment (USA) is a well-known American manufacturer located in St. Petersburg, FL. IMR specialises in the manufacturing of gas/combustion analyser products.

IMR designs and builds: Portable; Handheld; Stationary gas/combustion analysers (CEMS).

IMR are preferred around the world due to their capability to customise each of their instruments to meet customer’s project requirements, demands and needs.

At IMR, they are proud of the high quality of their products and excellent customer service.

On this occasion, they are introducing their new IMR5000 CEMS (Continuous Emission Monitoring System).

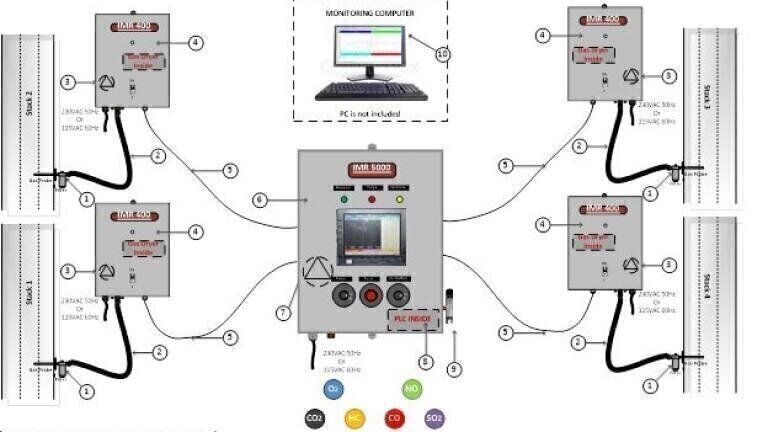

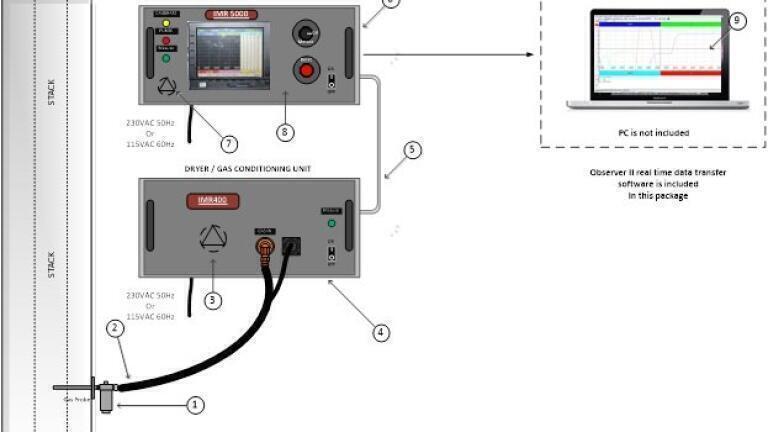

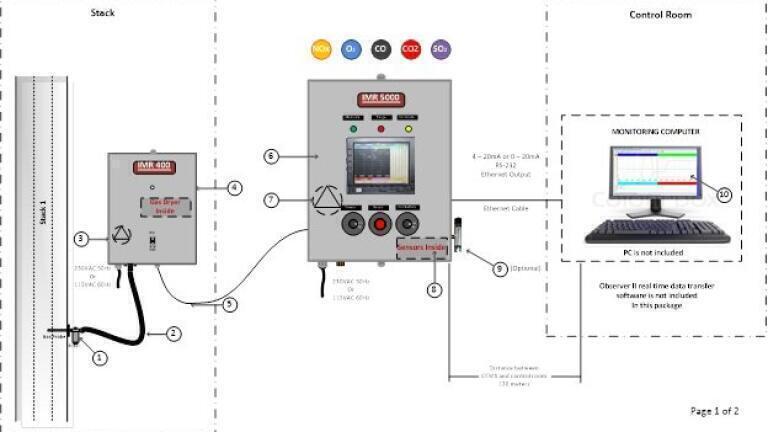

IMR's CEMS can continuously and simultaneously monitor up to 18 parameters at the time. It is a completely customisable system. The system can be set up to be a 19in rack mount unit (figure 1), it can be set up as a stand-alone system (figure 2) or set up to measure several stacks at the same time (figure 3).

The flexibility of the IMR5000 CEMS allows it to offer an endless set up of possibilities to measure different gases like CO, CO2, NO, NO2, CH4, HC, NH3, Cl2, HCl, H2, O3, SO2, H2S, O2, among other gases. The system can also be equipped to measure temperature (OC/OF), Draft / Pressure as well as other parameters upon request.

Moreover, the IMR5000 CEMS can calculate additional parameters like: CO2 (O2 Sensor must be installed in unit); Efficiency / Losses; Excess air / Lambda; Flue gas velocity; O2 reference.

Other additional features that the IMR5000 CEMS can offer: Memory; Real Time Data Transfer; Software (Observer II) for hourly, daily, weekly, monthly and customised reports.
