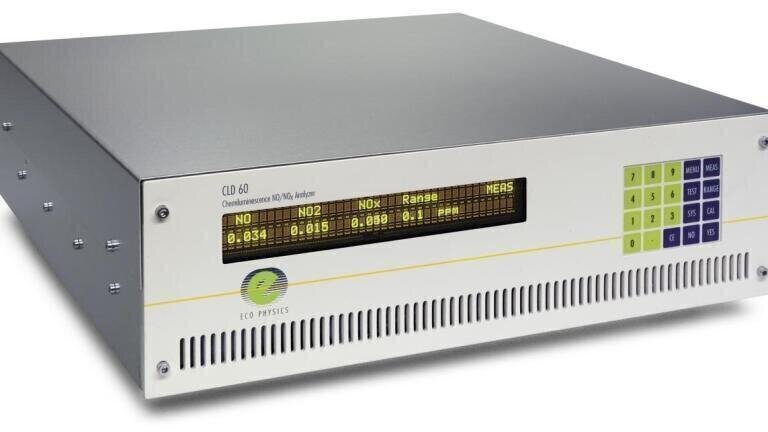

New NOx CLD 63 from ECO PHYSICS

Our proven Chemiluminescence Detector CLD 60 series product line has gotten a new addition:

The CLD 63 NOx analyzer!

Due to the more stringent regulations processes get cleaner and require more sensitive instruments. In particular, gas turbines in cogeneration power plants have NOx levels below 10 ppm in general. So, there is no need to measure up to 5’000 ppm of NOx, the maximum range of the CLD 62. Thus, the new addition CLD 63 fills the gap for emissions measurements between our standard emission instrument and the much more sensitive ambient monitoring equipment. http://j.mp/Q8GXzm

The new CLD 63 nitrogen oxide analyzer tells you exactly and reliably your NOx emissions. With its four user-defined measuring ranges up to 500 ppm it covers the relevant scale for monitoring clean CEMS and stack testing applications as mentioned above. The minimum detectable concentration is 0.05 ppm making this instrument ideal for processes with low level NOx exhaust. For detailed specifications see here

Despite its simple construction, there has been no relaxation of the customary high ECO PHYSICS standards. Thus, for example, it has a temperature-stabilized photomultiplier, a high-efficiency ozone generator and an internal thermal ozone scrubber. Just ask for further information – you will be astonished by this economical solution!

The CLD 63 can be operated by use of the built-in keyboard and display, but also through a PC for further data processing. It offers valuable findings in any situation where the continuous monitoring of national standards or quality inspection of specific methods is required. The CLD 63 nitrogen oxides analyzer is your choice for NOx measurements.
