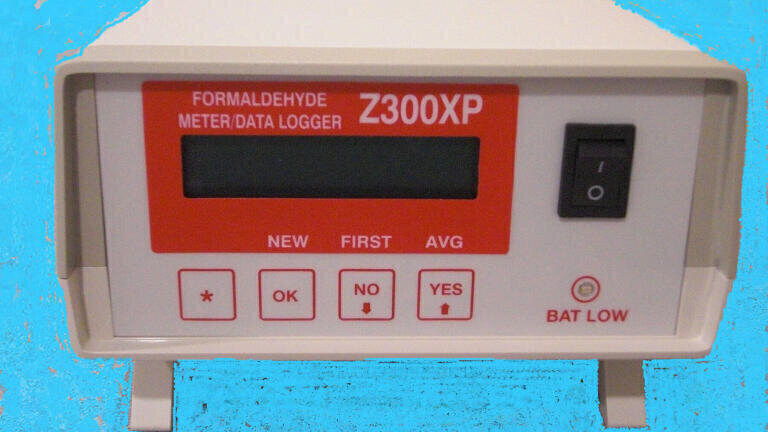

Z-300 Formaldehyde Monitor

Environmental Sensor’s (USA) Z-300XP formaldehyde monitor is a portable data logging instrument suitable for a wide range of industries and workplace conditions including health care, laboratory, indoor air quality or the manufacture of wood, furniture, or other construction materials.

The Z-300XP monitor uses electrochemical sensing technology and is designed to give accurate concentration levels of formaldehyde without interference from other chemicals by applying a special filter. The internal pump makes the sampling of hard-to-reach areas possible by attaching a flexible tube to the meter.

The operation of the Z-300XP formaldehyde meter is very simple. Turn on the switch and the instrument warms up automatically and starts showing the concentration of formaldehyde in ppm at every 10 seconds at 0.01ppm resolution. Just push a button and it displays TWA (updated hourly), STEL (updated every 15 minutes), or PEAK value. The concentration can be shown in ppm or mg/m3.

The instrument can store up to 14,400 data points. The data can be easily transferred to a PC by using the ESC terminal software for record keeping or data analysis. The user can customise the values of the alarm level, measure time length and log the time interval to meet the user’s need.
