Toxic Gas Detector for Small Hydrogen Leak Detection

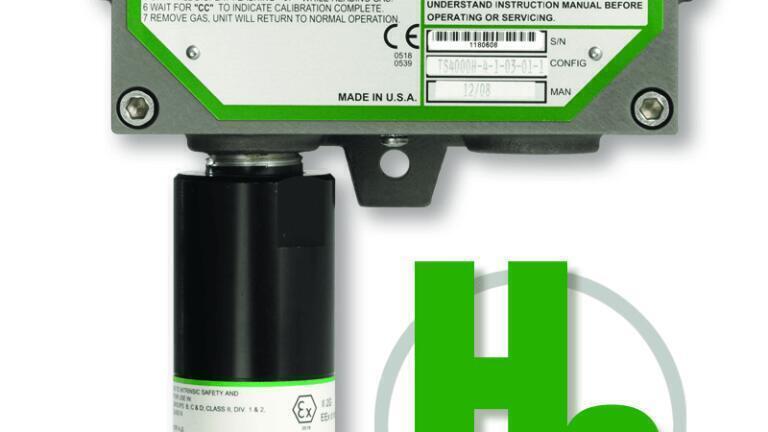

The TS4000H Gas Detector from General Monitors (USA) continuously monitors for hydrogen. It features a precision electrochemical hydrogen sensor that has a T90 response of under 30 seconds and minimal zero shift across its operating environmental conditions. Furthermore, it is unaffected by short-term (≤ 2.5 min) exposure to hydrogen concentrations up to 50% LEL.

The TS4000H Detector features a sophisticated design with many advanced functions, including 4-20 mA output, 8 amp relays, HART or Modbuscommunications, and a 3-digit LED display that displays gas concentrations in ppm. The system also displays fault codes for troubleshooting and provides complete status to the ControlRoom.

All of the electronics are contained within an explosion-proof housing so that gas sensor information can be processed at the sensor site. The gas sensor may be remote mounted up to 2000 feet (610 meters) away from the electronics.

The interface module’s galvanically-isolated, intrinsically-safe design also supports sensor field replacement without special tools or hot work permits. The TS4000H detector is easy to install and calibrates by activating a magneticswitch and applying gas.

Process engineers who need to protect people, equipment, and the environment will find the TS4000H hydrogen sensor well suited for a broad range of industries where hydrogen gas leaks are a hazard. For worldwide application, the detector complies with ATEX, CSA, CE, GOST, and is certified for use in SIL 2 environments.

In addition to monitoring for low hydrogen levels, the TS4000H can be configured to detect a variety of other toxic gases including; ammonia, carbon monoxide, chlorine and sulphur dioxide.
