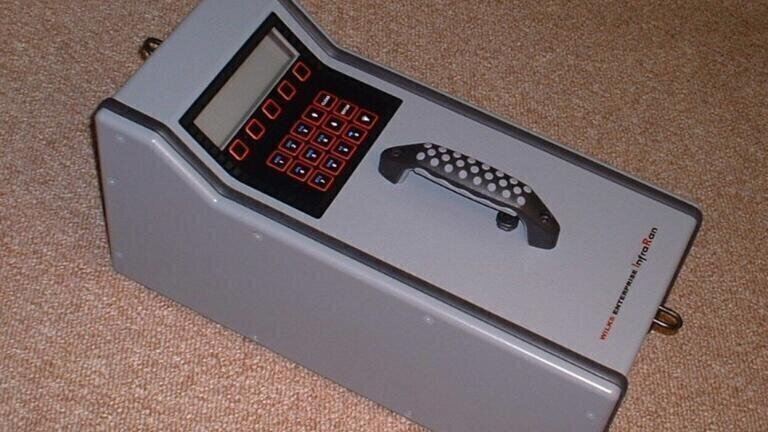

Portable Infrared Gas Analyser for On-site SF6 Gas Measurements

The InfraRan Analyser -- a portable, mid-infrared specific vapour analyser – form Wilks Enterprise (USA) is designed for easy, on-site measurement of sulphur hexafluoride (SF6) and is ideal for fume hood evaluations as per the ASHRAE 110 Method, as well as for determining airflow in ventilation systems, rooms and buildings. The InfraRan Specific Vapor Analyser provides accurate, on-site, real-time measurements of SF6 and is factory calibrated for measuring SF6 in the 0 – 10 parts per million (ppm) concentration range with resolution to 0.01 ppm.

The InfraRan Specific Vapour Analyser has been designed to be a rugged, field portable instrument, weighing under 18 lbs. It is ideal for both on-site survey studies and laboratory analyses. The analyser is factory calibrated for SF6 and operation is user-friendly via menu-driven software enabling non-technical personnel, as well as certified industrial hygienists to obtain easy, accurate measurements. The InfraRan Specific Vapour Analyser has a internal rechargeable battery for up to 8 hours of continuous field use or it can be operated from a 110/220V power source.

Web site: www.wilksir.com.
