New Multi-gas Analyser

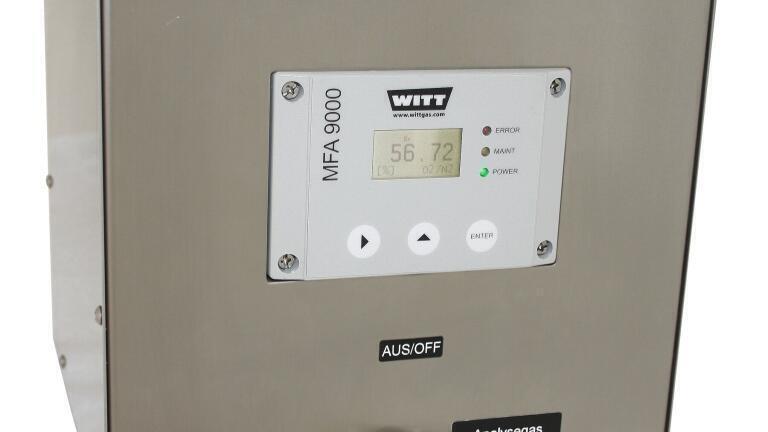

Is the gas mixture right? With the new gas analysis device MFA 9000 by WITT-Gasetechnik (gas technology) from Germany this question can now be answered in more detail by quality inspectors and service technicians than previously.

The analyser that can be used for a vast multitude of applications is now capable of determining the composition of 13 mixtures from respectively two gases. The MFA 9000 analyses the common technical gases of nitrogen, carbon dioxide, argon, hydrogen, helium as well as methane. Operation is practically infallible: for WITT a selector lever with three keys is covers it all. In the digital display the measuring result will be shown in percent in respect of the gas combination or as ppm share (parts per million). "In contrast to other devices only the mixed gas to be determined is required for a measurement," informs the director of the sales department, Martin Bender. "The user thus does not need an additional reference gas."

The measurement follows the principle of thermal conductivity, a quick and precise method, with unlimited useful life of the measuring cell. As quickly as one second, is the time taken for the first result to be given. The deviance from the final value of the measuring range is only around one percent. The calibration is done by means of a standard 2-point calibration or in simplification with one gas. Due to its compact dimensions of just 240 x 231 x 230 mm (w x h x d) the new MFA 9000 can be used mobile, 230 V are needed for operation. The gas pressure may be in the range from 1.5 to 20 bar; the flow rate is 40-150 Nl/h.

Those who want to use the antirust stainless steel analyser permanently and stationary, will be served excellently: the MFA 9000 is capable of alarm functions, detects measuring errors and delivers its data via an RS232 interface on a PC by which the device can be completely controlled and even calibrated as well. Furthermore, an outlet with 4-20 mA is provided, which can be optionally expanded.
