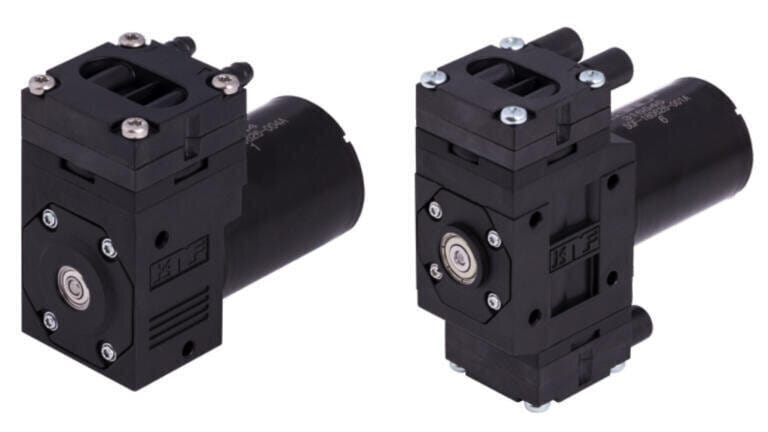

New micro gas sampling pumps with improved flow rate, vacuum and pressure

With its NMP series, KNF provides micro gas sampling pumps which have proven their worth over decades of use in a multitude of applications. The new NMP 830 HP offers a high-performance pump with extremely impressive specifications.

The new NMP 830 HP is an extension of the NMP series. This latest innovation offers a much higher flow rate, vacuum and pressure — while keeping the footprint small. The maximum flow rate is now 10 l/min, the vacuum is 50 mbar abs and the pressure is 3 bar. This gives engineers and developers a decisive advantage when designing equipment for particularly challenging applications. The NMP 830 HP is suitable for many applications such as medical and diagnostics equipment, ink jet printing, environmental monitoring and security application among other uses.

The diaphragm pump is available with 1 or 2 heads. The components that comes into contact with the medium are available in PPS and EPDM, optionally also in FKM or FFKM.

The pump can be used with a range of different motors from the KNF modular system, from inexpensive to high-end models, depending on the operating conditions.
