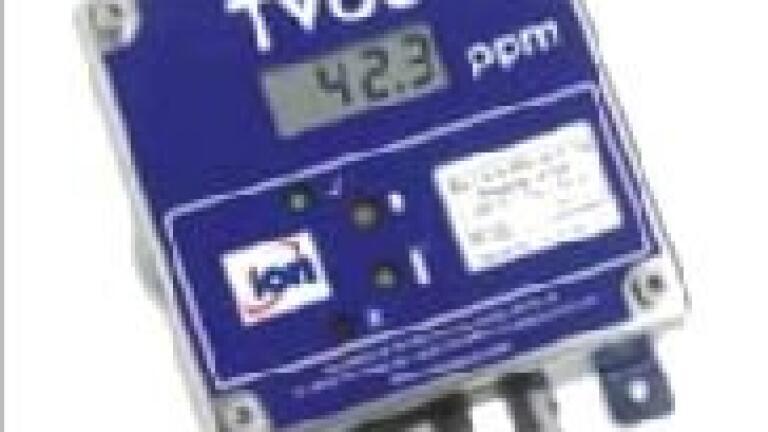

Ion Science is proud to introduce its new TVOC instrument with extended detection range for low-level VOC monitoring. The Intrinsically Safe fixed PID is now capable of detecting and measuring total volatile organic compounds with an additional range of 0 – 10 ppm. With increased sensitivity, TVOC is the only Intrinsically Safe fixed PID of its kind to offer this dynamic range.
Designed for fixed continuous monitoring of total VOCs, TVOC is now user selectable in choice of three detection ranges; 0 – 10 ppm, 0 – 100 ppm and 0 – 1,000 ppm. With an intelligent 4-20 mA analog output, TVOC can be simply integrated into a control system to give warning of high VOC levels in the working environment.
Thanks to its Intrinsic Safety, TVOC can be installed and operated without the need for an explosion proof enclosure. An ideal tool for use in manufacturing and process industries, TVOC is simple to install, service and calibrate with the PID sensor accessible in a matter of seconds.
Like all Ion Science PIDs, TVOC incorporates Ion Science patented Fence Electrode Technology; a unique three electrode format enabling increased resistance to both humidity and contamination.
