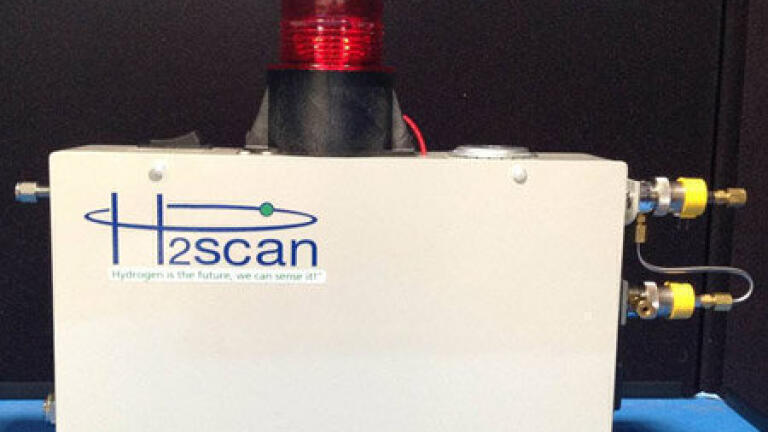

HY-OPTIMA™ 720AS-GC Hydrogen Analyzing System - Product Highlight

H2scan’s HY-OPTIMA 720AS-GC Hydrogen Analyzing System is designed to detect, measure and respond to hydrogen leaks in gas chromatography (GC) systems. The hydrogen specific solid-state sensing element is designed for long life, reliable operation, and for retrofit on all GC makes and models. The model 720AS-GC detects and measures hydrogen and provides alarm indications at a user selectable level. If hydrogen reaches the user selected alarm level, the alarm activates a light tower with a flashing red light, a buzzer and closes a valve to shut off the supply of hydrogen to the GC system. H2scan’s solution benefits customers and secures their safety with a quick response time, auto purge gas switch and visual & audible alarms.

Performance

Hydrogen Sensitivity Range:

0.5% to 5% hydrogen at 1 ATM on a volume basis in a single or multi-component gas background

Typical Response Time: T90 less than 60 sec

Recommended Verifiction Interval: 90 days

Product Life Expectancy: 10 years

Accuracy: ± (0.03 x indication + 0.2) percent hydrogen by volume

Instrument Display

System Power On/Off LED

Alarm Strobe Light

Pump power On/OFF LED

Solenoid valve LED

Interface Options

Power Suppley: 110 VAC

Serial Communications: RS-232, RS-422, USB (optional)

Operating Conditions

Operating Humidity: 0% to 95% RH

Flow Rate: Up to 50 slpm

Operating Temperature Range: 0ºC to 40ºC

Storage Temperature Range: 0ºC to 50ºC

Calibration Background Gas: Air or Nitrogen

Alarm

Set Point: User adjustable set point (0.5%-4%)

Response: Audible and visual output

Auto Hydrogen shut off

Inert Gas (Nitrogen, Argon) purge

Dimensions

Length: 13 in.

Width: 15.5 in.

Depth: 3 in.

Weight

1.5 kg (~3lb.)
